SiHLIZ44G, Power MOSFET

Power MOSFET IRLIZ44G, SiHLIZ44G Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 60 VGS = 5 V .
Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistan.

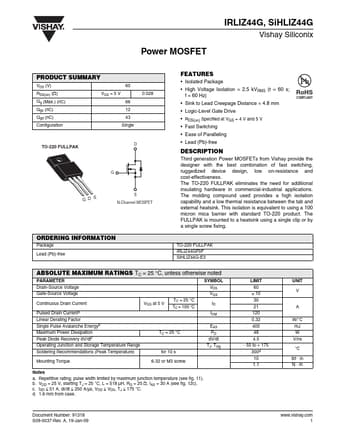

datasheet Preview Page 1 from Datasheet4u.com

SiHLIZ44G-Vishay.pdf

SiHLIZ44G Datasheet Preview — Preview of SiHLIZ44G PDF

Datasheet Details

Part number:

SiHLIZ44G

Manufacturer:

Vishay ↗

File Size:

1.74 MB

Description:

Power MOSFET

Features

* Isolated Package
* High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
* Sink to Lead Creepage Distance = 4.8 mm
* Logic-Level Gate Drive
* RDS(on) Specified at VGS = 4 V and 5 V
* Fast Switching
* Ease of Paralleling
* Lead (Pb)

Applications

* The molding compound used provides a high isolation capability and a low thermal resistance between the tab and external heatsink. This isolation is equivalent to using a 100 micron mica barrier with standard TO-220 product. The FULLPAK is mounted to a heatsink using a single clip or by a single sc
