* ThunderFET® power MOSFET
* Maximum 175 °C junction temperature
* 100 % Rg and UIS tested
* Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS D
* Power supplies: - Uninterruptible power supplies -

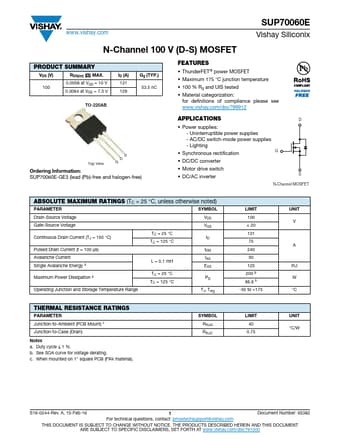

SUP70060E Datasheet (155.54 KB)
SUP70060E
155.54 KB
N-channel mosfet.
www.vishay.com
SUP70060E
Vishay Siliconix
N-Channel 100 V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V)
RDS(on) () MAX.
0.0058 at VGS = 10 V 100
0.0064 .
