SUP70N04-10 Datasheet - Vishay

SUP70N04-10 N-Channel MOSFET

SUP/SUB70N04-10 Vishay Siliconix N-Channel 40-V (D-S), 175_C MOSFET PRODUCT SUMMARY V(BR)DSS (V) 40 rDS(on) (W) 0.010 @ VGS = 10 V 0.014 @ VGS = 4.5 V ID (A) 70 58 TO-220AB TO-263 DRAIN connected to TAB GDS Top View SUP70N04-10 G DS Top View SUB70N04-10 D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25_C UNLESS OTHERWISE NOTED) Parameter Symbol Limit Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C) Pulsed Drain Current Avalanche Current Repetiti.

SUP70N04-10 Datasheet (49.62 KB)

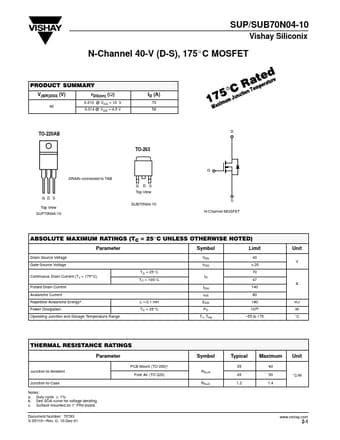

Preview of SUP70N04-10 PDF
SUP70N04-10 Datasheet Preview Page 2 SUP70N04-10 Datasheet Preview Page 3

Datasheet Details

Part number:

SUP70N04-10

Manufacturer:

Vishay ↗

File Size:

49.62 KB

Description:

N-channel mosfet.
