SUP75N03-07 N-Channel MOSFET

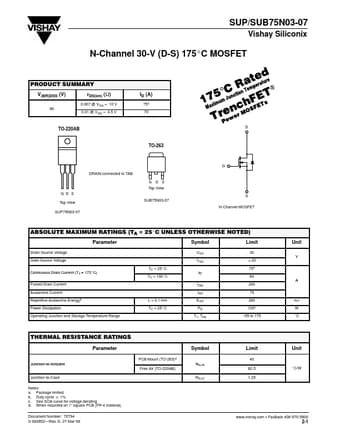

SUP/SUB75N03-07 Vishay Siliconix N-Channel 30-V (D-S) 175_C MOSFET PRODUCT SUMMARY V(BR)DSS (V) 30 rDS(on) (W) 0.007 @ VGS = 10 V 0.01 @ VGS = 4.5 V ID (A) 75a 70 TO-220AB D TO-263 G DRAIN connected to TAB G G D S Top View SUP75N03-07 SUB75N03-07 N-Channel MOSFET D S Top View S ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C) Pulsed Drain Current Avalanche Current Repetitive Avalanche Ene.
