SUP75N06-07L Datasheet (Vishay Siliconix)

SUP75N06-07L, N-Channel MOSFET

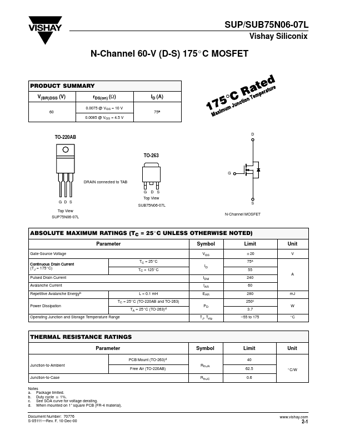

SUP/SUB75N06-07L Vishay Siliconix N-Channel 60-V (D-S) 175_C MOSFET PRODUCT SUMMARY V(BR)DSS (V) 60 0.0085 @ VGS = 4.5 V rDS(on) (W) 0.0075 @ VGS = 10 V ID (A) 75a TO-220AB D TO-263 G DRAIN connected to TAB G G D S Top View SUP75N06-07L D S S N-Channel MOSFET Top View SUB75N06-07L ABSOLUTE MAXIMUM RATINGS (TC = 25_C UNLESS OTHERWISE NOTED) Parameter Gate-Source Voltage Continuous Drain Current (TJ = 175_C) Pulsed Drain Current Avalanche Current Repetitive Avalanche Energyb Power Dissip
