SUP75N06-12L N-Channel MOSFET

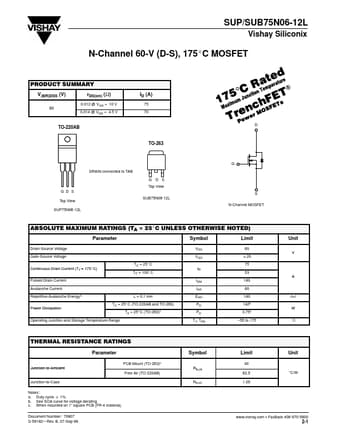

SUP/SUB75N06-12L Vishay Siliconix N-Channel 60-V (D-S), 175_C MOSFET PRODUCT SUMMARY V(BR)DSS (V) 60 rDS(on) (W) 0.012 @ VGS = 10 V 0.014 @ VGS = 4.5 V ID (A) 75 70 D TO-220AB TO-263 G DRAIN connected to TAB G G D S Top View SUP75N06-12L SUB75N06-12L N-Channel MOSFET D S Top View S ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C) Pulsed Drain Current Avalanche Current Repetitive Avalanche .
