SUP75N08-09L Datasheet (Vishay Siliconix)

SUP75N08-09L, N-Channel MOSFET

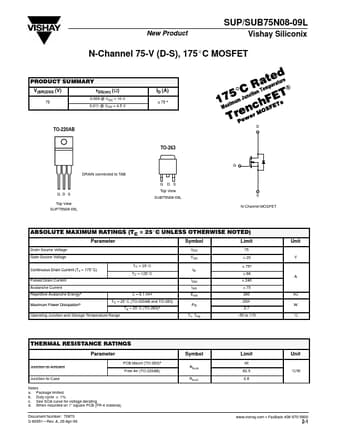

SUP/SUB75N08-09L New Product Vishay Siliconix N-Channel 75-V (D-S), 175_C MOSFET PRODUCT SUMMARY V(BR)DSS (V) 75 rDS(on) (W) 0.009 @ VGS = 10 V 0.011 @ VGS = 4.5 V ID (A) "75 a TO-220AB D TO-263 G DRAIN connected to TAB G G D S Top View SUP75N08-09L D S S N-Channel MOSFET Top View SUB75N08-09L ABSOLUTE MAXIMUM RATINGS (TC = 25_C UNLESS OTHERWISE NOTED) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C) Pulsed Drain Current Avalanche Current Repetit
