TSSP53056

IR Sensor

TSSP53056 Features

* Presence sensor: up to 2 m distance, find more info at: www.vishay.com/doc?49009

* Light barrier: up to 12 m distance, TSAL6200 with IF = 50 mA, find more info at: www.vishay.com/doc?49650

* Fast proximity: up to 2 m range at 5 ms response time, find more info at: www.visha

TSSP53056 General Description

The TSSP530.. series are compact infrared detector modules for presence and fast proximity sensing applications. They provide an active low output in response to infrared bursts at 940 nm. The frequency of the burst should correspond to the carrier frequency shown in the parts table. This component .

TSSP53056 Datasheet (193.28 KB)

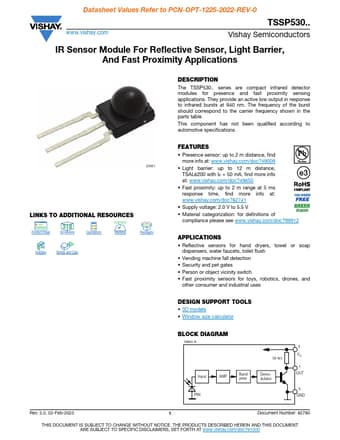

Preview of TSSP53056 PDF

Datasheet Details

Part number:

TSSP53056

Manufacturer:

Vishay ↗

File Size:

193.28 KB

Description:

Ir sensor.
Datasheet Values Refer to PCN-OPT-1225-2022-REV-0 www.vishay.com TSSP530.. Vishay Semiconductors IR Sensor Module For Reflective Sensor, Light Barr.
