V30D100C Datasheet, Rectifier, Vishay

V30D100C Features

  • Rectifier
  • Trench MOS Schottky technology Available
  • Very low profile - typical height of 1.7 mm
  • Ideal for automated placement
  • Low forward voltage drop,

PDF File Details

Part number:

V30D100C

Manufacturer:

Vishay ↗

File Size:

109.12kb

Download:

📄 Datasheet

Description:

Trench mos barrier schottky rectifier.

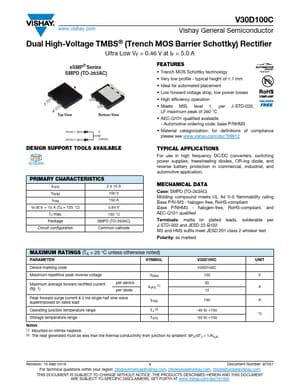

Datasheet Preview: V30D100C 📥 Download PDF (109.12kb)
Page 2 of V30D100C Page 3 of V30D100C

V30D100C Application

  • Applications For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection
