V30D170C Trench MOS Barrier Schottky Rectifier

V30D170C Description

www.vishay.com V30D170C Vishay General Semiconductor Dual High Voltage TMBS® (Trench MOS Barrier Schottky) Rectifier eSMP® Series K 1 2 Top View .

V30D170C Features

* Very low profile - typical height of 1.7 mm Available
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* AEC-Q101 qualified available
* Material categorizati

V30D170C Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM 2 x 15.0 A 170 V 260 A VF at IF = 5.0 A (TA = 125 °C) 0.66 V TJ max. Package 175 °C SMPD (TO-263AC) Circuit config

📥 Download Datasheet

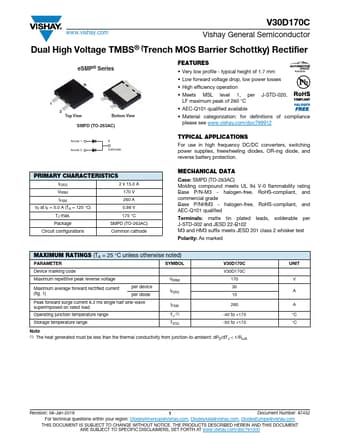

Preview of V30D170C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
V30D170C
Manufacturer
Vishay ↗
File Size
104.72 KB
Datasheet
V30D170C-Vishay.pdf
Description
Trench MOS Barrier Schottky Rectifier
