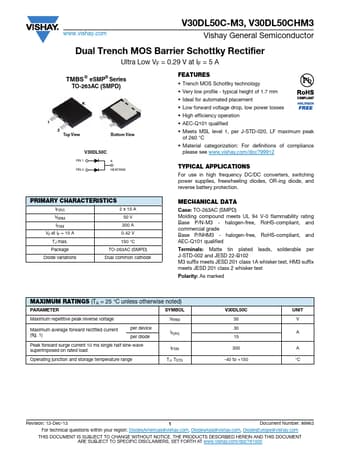

V30DL50C-M3 Datasheet, Rectifier, Vishay

V30DL50C-M3 Features

• Rectifier
• Trench MOS Schottky technology
• Very low profile - typical height of 1.7 mm
• Ideal for automated placement
• Low forward voltage drop, low power loss

PDF File Details

Part number:

V30DL50C-M3

Manufacturer:

Vishay ↗

File Size:

122.69kb

Download:

📄 Datasheet

Description:

Dual trench mos barrier schottky rectifier.

V30DL50C-M3 Application

• Applications For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection
