V30DL50CHM3, V30DL50C-M3 Dual Trench MOS Barrier Schottky Rectifier

V30DL50CHM3 Description

www.vishay.com V30DL50C-M3, V30DL50CHM3 Vishay General Semiconductor Dual Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.29 V at IF = 5 A T.

V30DL50CHM3 Features

* Trench MOS Schottky technology
* Very low profile - typical height of 1.7 mm
* Ideal for automated placement
* Low forward voltage drop, low power losses
* High efficiency operation
* AEC-Q101 qualified
* Meets MSL level 1, per J-STD-020, LF

V30DL50CHM3 Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 15 A TJ max. Package 2 x 15 A 50 V 300 A 0.42 V 150 °C TO-263AC (SMPD) Diode variations Dual common cathod

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: V30DL50CHM3, V30DL50C-M3. Please refer to the document for exact specifications by model.

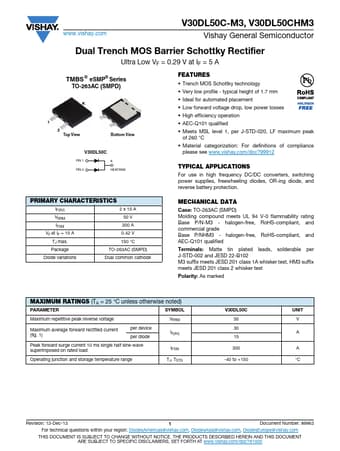

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
V30DL50CHM3, V30DL50C-M3
Manufacturer
Vishay ↗
File Size
122.69 KB
Datasheet
V30DL50C-M3-Vishay.pdf
Description
Dual Trench MOS Barrier Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: V30DL50CHM3, V30DL50C-M3.
Please refer to the document for exact specifications by model.
