V30M120C Dual High-Voltage Trench MOS Barrier Schottky Rectifier

V30M120C Description

www.vishay.com V30M120C, VI30M120C Vishay General Semiconductor Dual High-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.52 V at IF .

V30M120C Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* AEC-Q101 qualified
* Material categorization: for definitions of compliance please see www. visha

V30M120C Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. MECHANICAL DATA Case: TO-220AB and TO-262AA Molding compound meets UL 94 V-0 flammability rating Base P/N

📥 Download Datasheet

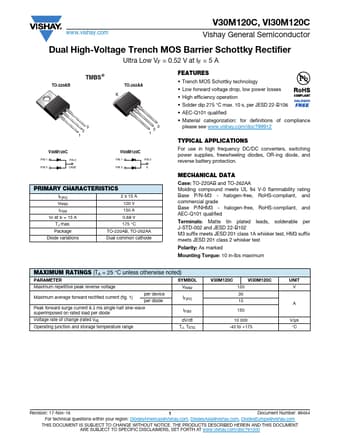

Preview of V30M120C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
V30M120C
Manufacturer
Vishay ↗
File Size
139.65 KB
Datasheet
V30M120C-Vishay.pdf
Description
Dual High-Voltage Trench MOS Barrier Schottky Rectifier
