V30M120CHM3, V30M120C-M3 Dual High-Voltage Trench MOS Barrier Schottky Rectifier

V30M120CHM3 Description

www.vishay.com V30M120CxM3, VI30M120CxM3 Vishay General Semiconductor Dual High-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.52 V .

V30M120CHM3 Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* AEC-Q101 qualified
* Material categorization: For definitions of compliance please see www. visha

V30M120CHM3 Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 15 A TJ max. Package 2 x 15 A 120 V 150 A 0.68 V 175 °C TO-220AB, TO-262AA Diode variations Dual common ca

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: V30M120CHM3, V30M120C-M3. Please refer to the document for exact specifications by model.

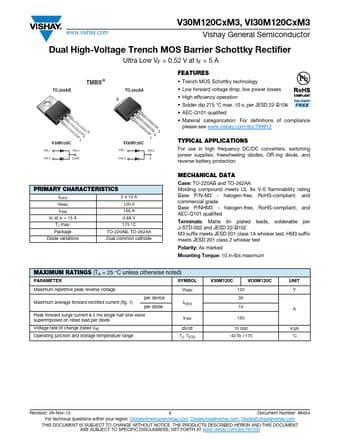

datasheet Preview Page 2 datasheet Preview Page 3
