VBP104FAS - Silicon PIN Photodiode

Vishay

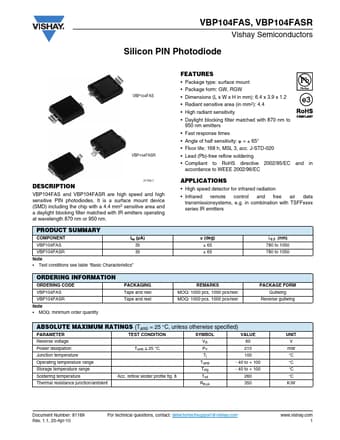

VBP104FAS Datasheet Preview — Preview of VBP104FAS PDF

Datasheet Details

Part number	VBP104FAS
Manufacturer	Vishay ↗
File Size	225.71 KB
Description	Silicon PIN Photodiode
Datasheet	VBP104FAS_Vishay.pdf

VBP104FAS Product details

Description

VBP104FAS and VBP104FASR are high speed and high sensitive PIN photodiodes. Test conditions see table “Basic Characteristics” Ira (µA) 35 35 ϕ (deg) ± 65 ± 65 λ0.5 (nm) 780 to 1050 780 to 1050 ORDERING INFORMATION ORDERING CODE VBP104FAS VBP104FASR Note

Features

Package type: surface mount Package form: GW, RGW Dimensions (L x W x H in mm): 6.4 x 3.9 x 1.2 Radiant sensitive area (in mm2): 4.4 High radiant sensitivity VBP104FAS.
Daylight blocking filter matched with 870 nm to 950 nm emitters.
Fast response times.
Angle of half sensitivity: ϕ = ± 65° Floor life: 168 h, MSL 3, acc. J-STD-020 Lead (Pb)-free reflow soldering Compliant to RoHS directiv.
