VBP104SR, VBP104S - Silicon PIN Photodiode

Vishay

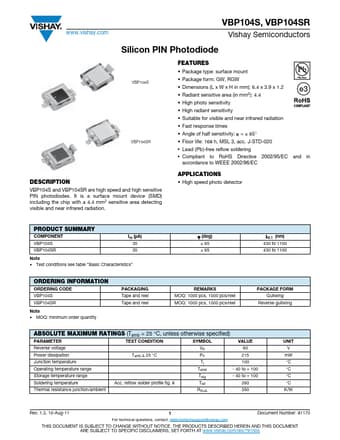

VBP104SR Datasheet Preview — This datasheet PDF includes multiple part numbers: VBP104SR, VBP104S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	VBP104SR, VBP104S
Manufacturer	Vishay ↗
File Size	222.58 KB
Description	Silicon PIN Photodiode
Datasheet	VBP104S_Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VBP104SR, VBP104S. Please refer to the document for exact specifications by model.

VBP104SR Product details

Description

VBP104S and VBP104SR are high speed and high sensitive PIN photodiodes. High speed photo detector PRODUCT SUMMARY COMPONENT VBP104S VBP104SR Ira (μA) 35 35  (deg) ± 65 ± 65 0.1 (nm) 430 to 1100 430 to 1100 Note Test conditions see table “Basic Characteristics” ORDERING INFORMATION ORDERING CODE VBP104S VBP104SR Note MOQ: minimum

Features

Package type: surface mount VBP104S.
Package form: GW, RGW.
Dimensions (L x W x H in mm): 6.4 x 3.9 x 1.2.
Radiant sensitive area (in mm2): 4.4.
High photo sensitivity.
High radiant sensitivity.
Suitable for visible and near infrared radiation.
Fast response times.
Angle of half sensitivity:  = ± 65° VBP104SR.
Floor life: 168 h, MSL 3, acc. J-STD-020.
Lead (Pb)-free reflow soldering.
