VBP104S - Silicon PIN Photodiode

Vishay

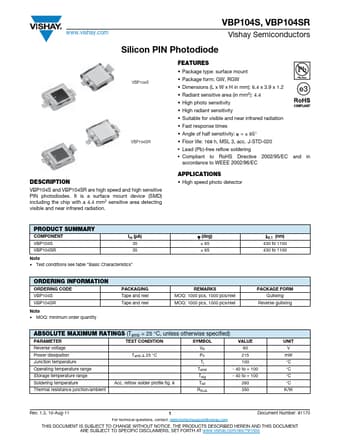

VBP104S Datasheet Preview — Preview of VBP104S PDF

Datasheet Details

Part number	VBP104S
Manufacturer	Vishay ↗
File Size	222.58 KB
Description	Silicon PIN Photodiode
Datasheet	VBP104S_Vishay.pdf

VBP104S Product details

Description

VBP104S and VBP104SR are high speed and high sensitive PIN photodiodes. High speed photo detector PRODUCT SUMMARY COMPONENT VBP104S VBP104SR Ira (μA) 35 35  (deg) ± 65 ± 65 0.1 (nm) 430 to 1100 430 to 1100 Note Test conditions see table “Basic Characteristics” ORDERING INFORMATION ORDERING CODE VBP104S VBP104SR Note MOQ: minimum

Features

Package type: surface mount VBP104S.
Package form: GW, RGW.
Dimensions (L x W x H in mm): 6.4 x 3.9 x 1.2.
Radiant sensitive area (in mm2): 4.4.
High photo sensitivity.
High radiant sensitivity.
Suitable for visible and near infrared radiation.
Fast response times.
Angle of half sensitivity:  = ± 65° VBP104SR.
Floor life: 168 h, MSL 3, acc. J-STD-020.
Lead (Pb)-free reflow soldering.
