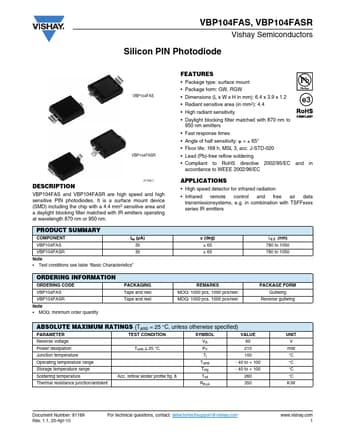

VBP104FASR, VBP104FAS - Silicon PIN Photodiode

Vishay

VBP104FASR Datasheet Preview — This datasheet PDF includes multiple part numbers: VBP104FASR, VBP104FAS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	VBP104FASR, VBP104FAS
Manufacturer	Vishay ↗
File Size	225.71 KB
Description	Silicon PIN Photodiode
Datasheet	VBP104FAS_Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VBP104FASR, VBP104FAS. Please refer to the document for exact specifications by model.

VBP104FASR Product details

Description

VBP104FAS and VBP104FASR are high speed and high sensitive PIN photodiodes. Test conditions see table “Basic Characteristics” Ira (µA) 35 35 ϕ (deg) ± 65 ± 65 λ0.5 (nm) 780 to 1050 780 to 1050 ORDERING INFORMATION ORDERING CODE VBP104FAS VBP104FASR Note

Features

Package type: surface mount Package form: GW, RGW Dimensions (L x W x H in mm): 6.4 x 3.9 x 1.2 Radiant sensitive area (in mm2): 4.4 High radiant sensitivity VBP104FAS.
Daylight blocking filter matched with 870 nm to 950 nm emitters.
Fast response times.
Angle of half sensitivity: ϕ = ± 65° Floor life: 168 h, MSL 3, acc. J-STD-020 Lead (Pb)-free reflow soldering Compliant to RoHS directiv.
