VSMP1206 Discrete High Precision Surface Mount Chip Resistor

VSMP1206 Description

VSMP1206 Vishay Foil Resistors SURFACE MOUNT Z-Based Bulk Metal® Foil Technology Discrete High Precision Surface Mount Chip Resistor High Power - Exc.

VSMP1206 Features

* Excellent Load Life Stabilty: (70°C for 2000 hours) ± 0.005% at 200mW ± 0.01% at 300mW
* High Rated Power at +70°C: 300mW
* Tight Tolerance to ± 0.01% (see table 1)
* Low TCR to ± 2ppm/°C (see table 1)
* Resistance Range: 10Ω to 30KΩ (for lower and higher va

VSMP1206 Applications

* using solutions based on BZMF technology. The new technology provides inherently an extremely low and predictable Temperature Coefficient of Resistance (TCR), a remarkably improved load life stability, low noise and availability of tight tolerance. The TCR is a process capability not a selection pro

📥 Download Datasheet

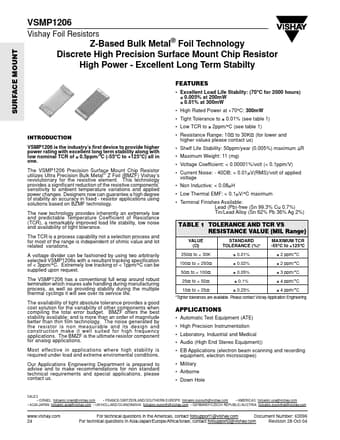

Preview of VSMP1206 PDF
datasheet Preview Page 2

Datasheet Details

Part number
VSMP1206
Manufacturer
Vishay ↗
File Size
84.19 KB
Datasheet
VSMP1206-Vishay.pdf
Description
Discrete High Precision Surface Mount Chip Resistor
