VSMP0603

Ultra High Precision Foil Wraparound Surface Mount Chip Resistor

VSMP0603 Features

* Temperature coefficient of resistance (TCR): 0.05 ppm/°C typical (0 °C to + 60 °C) 0.2 ppm/°C typical (- 55 °C to + 125 °C, + 25 °C ref.)

* Tolerance: to ± 0.01 %

* Power coefficient “R due to self heating”: 5 ppm at rated power

* Power rating: to 100 mW at + 70 °C

* Load life

VSMP0603 Datasheet (261.37 KB)

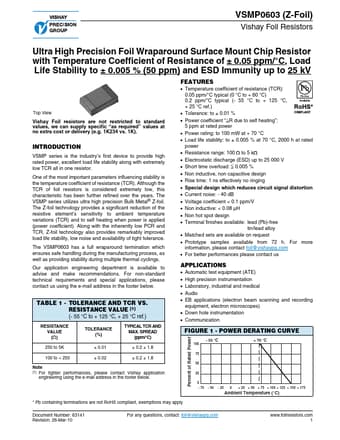

Preview of VSMP0603 PDF

Datasheet Details

Part number:

VSMP0603

Manufacturer:

Vishay ↗

File Size:

261.37 KB

Description:

Ultra high precision foil wraparound surface mount chip resistor.
VSMP0603 (Z-Foil) Vishay Foil Resistors Ultra High Precision Foil Wraparound Surface Mount Chip Resistor with Temperature Coefficient of Resistance o.
