VSMP2010, VSMP0805 - Ultra High Precision Foil Wraparound Surface Mount Chip Resistor

Name: VSMP2010
SKU: VSMP2010-840584

Vishay

The VSMP2010 by Vishay is a Ultra High Precision Foil Wraparound Surface Mount Chip Resistor. Below is the official datasheet preview.

Datasheet Details

Part number	VSMP2010, VSMP0805
Manufacturer	Vishay
File Size	255.42 KB
Description	Ultra High Precision Foil Wraparound Surface Mount Chip Resistor
Datasheet	VSMP0805-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VSMP2010, VSMP0805. Please refer to the document for exact specifications by model.

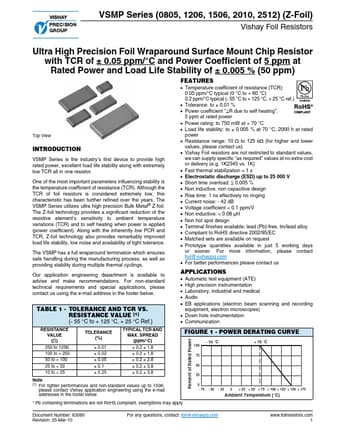

Additional preview pages of the VSMP2010 datasheet.

Temperature coefficient of resistance (TCR): 0.05 ppm/°C typical (0 °C to + 60 °C) 0.2 ppm/°C typical (- 55 °C to + 125 °C, + 25 °C ref. ).
Tolerance: to ± 0.01 %.
Power coefficient “ΔR due to self heating”: 5 ppm at rated power.
Power rating: to 750 mW at + 70 °C.
Load life stability: to ± 0.005 % at 70 °C, 2000 h at rated power.
Resistance range: 10 Ω to 125 kΩ (for higher and lower values, please contact us).
Vishay Foil resistors.
