VSMP1506, VSMP0805, Ultra High Precision Foil Wraparound Surface Mount Chip Resistor

VSMP Series (0805, 1206, 1506, 2010, 2512) (Z-Foil) Vishay Foil Resistors Ultra High Precision Foil Wraparound Surface Mount Chip Resistor with TCR o.

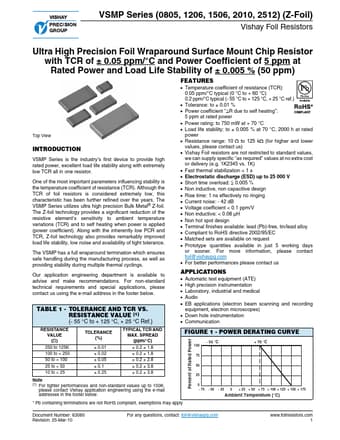

datasheet Preview Page 1 from Datasheet4u.com

VSMP0805-Vishay.pdf

VSMP1506 Datasheet Preview — This datasheet PDF includes multiple part numbers: VSMP1506, VSMP0805. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VSMP1506, VSMP0805

Manufacturer:

Vishay ↗

File Size:

255.42 KB

Description:

Ultra High Precision Foil Wraparound Surface Mount Chip Resistor

Note:

This datasheet PDF includes multiple part numbers: VSMP1506, VSMP0805.
Please refer to the document for exact specifications by model.

Features

* Temperature coefficient of resistance (TCR): 0.05 ppm/°C typical (0 °C to + 60 °C) 0.2 ppm/°C typical (- 55 °C to + 125 °C, + 25 °C ref. )
* Tolerance: to ± 0.01 %
* Power coefficient “ΔR due to self heating”: 5 ppm at rated power
* Power rating: to 750 mW at + 70 °C

Applications

* please contact us using the e-mail address in the footer below. APPLICATIONS
* Automatic test equipment (ATE) High precision instrumentation Laboratory, industrial and medical Audio EB applications (electron beam scanning and recording equipment, ele
