VSMY98545DS - High Power Infrared Emitting Diode

Name: VSMY98545DS
SKU: VSMY98545DS-1328931

Vishay

📥 Download Datasheet

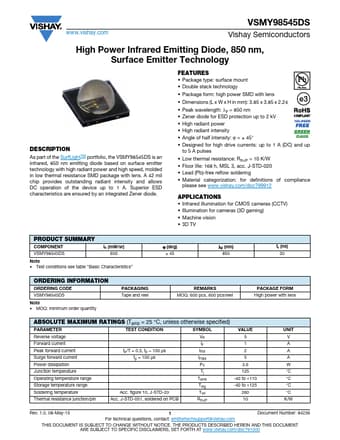

VSMY98545DS Datasheet Preview — Preview of VSMY98545DS PDF

Datasheet Details

Part number	VSMY98545DS
Manufacturer	Vishay
File Size	254.44 KB
Description	High Power Infrared Emitting Diode
Datasheet	VSMY98545DS-Vishay.pdf

VSMY98545DS Product details

Description

As part of the SurfLightTM portfolio, the VSMY98545DS is an infrared, 850 nm emitting diode based on surface emitter technology with high radiant power and high speed, molded in low thermal resistance SMD package with lens.

Features

Package type: surface mount.
Double stack technology.
Package form: high power SMD with lens.
Dimensions (L x W x H in mm): 3.85 x 3.85 x 2.24.
Peak wavelength: λp = 850 nm.
Zener diode for ESD protection up to 2 kV.
High radiant power.
High radiant intensity.
Angle of half intensity: ϕ = ± 45°.
Designed for high drive currents: up to 1 A (DC) and up to 5 A pulses.
Low thermal resistance: RthJP =.
