WSF2515

Metal Film Resistors

WSF2515 Features

* Molded encapsulation

* Wraparound compliant terminations eliminate risk of solder fillet cracking

* Solderable terminations

* Excellent stability at different environmental conditions

* High power ratings (up to 2 W)

* AEC-Q200 qualified (1)

WSF2515 Datasheet (91.59 KB)

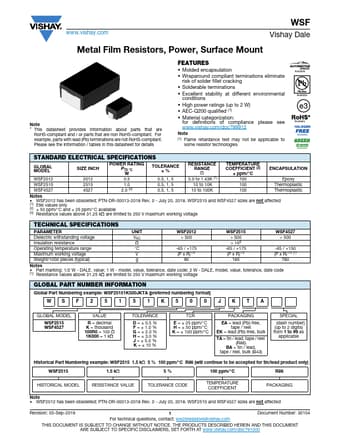

Preview of WSF2515 PDF

Datasheet Details

Part number:

WSF2515

Manufacturer:

Vishay ↗

File Size:

91.59 KB

Description:

Metal film resistors.
www.vishay.com WSF Vishay Dale Metal Film Resistors, Power, Surface Mount Note
* This datasheet provides information about parts that are RoH.
