WSF256K8-xCx

256Kx8 SRAM/ FLASH MODULE

WSF256K8-xCx Features

* s Access Times of 35ns (SRAM) and 70ns (FLASH) s JEDEC Standard, Hermetic Ceramic Package, 32 pin DIP (Package 300) s 256Kx8 SRAM s 256Kx8 5V FLASH s Memory Map Flash Memory: 0H-3FFFFH SRAM: 40000H-7FFFFH s Low Power CMOS s Commercial, Industrial and Military Temperature Ranges s TTL Compatible Inpu

WSF256K8-xCx General Description

A0-18 I/O0-7 CS OE WE VCC VSS Address Inputs Data Input/Output Chip Select Output Enable Write Enable +5.0V Power Ground s 10,000 Erase/Program Cycles s Sector Architecture

* 8 equal size sectors of 16KBytes each

* Any combination of sectors can be concurrently erased. Also supports.

WSF256K8-xCx Datasheet (52.70 KB)

Preview of WSF256K8-xCx PDF

Datasheet Details

Part number:

WSF256K8-xCx

Manufacturer:

White Electronic

File Size:

52.70 KB

Description:

256kx8 sram/ flash module.
www.DataSheet4U.com WSF256K8-XCX 256Kx8 SRAM/ FLASH MODULE FIG. 1 PIN CONFIGURATION TOP VIEW A18 A16 A15 A12 A7 A6 A5 A4 A3 A2 A1 A0 I/O0 I/O1 I/O2 V.

📁 Related Datasheet

WSF2515 - Metal Film Resistors (Vishay)
.vishay. WSF Vishay Dale Metal Film Resistors, Power, Surface Mount Note * This datasheet provides information about parts that are RoHS-co.

WSF2012 - Metal Film Resistors (Vishay)
.vishay. WSF Vishay Dale Metal Film Resistors, Power, Surface Mount Note * This datasheet provides information about parts that are RoHS-co.

WSF2816-39XX - 128K x 16 SRAM / 512K x 16 FLASH MODULE (White Electronic)
.. White Electronic Designs 128KX16 SRAM/512KX16 FLASH MODULE FEATURES Access Times of 35ns (SRAM) and 90ns (FLASH) Packaging • 66 p.

WSF128K16-xxx - 128K X 16 SRAM /FLASH MODULE SMD 5962-96900 (White Electronic)
.. WSF128K16-XXX 128Kx16 SRAM/FLASH MODULE, SMD 5962-96900 FEATURES n n n Access Times of 35ns (SRAM) and 70ns (FLASH) n Access Time.

WSF128K32-xH2x - 128K x 32 SRAM/FLASH MODULE (White Electronic)
.. White Electronic Designs 128KX32 SRAM/FLASH MODULE FEATURES ■ Access Times of 25ns (SRAM) and 70, 90 and 120ns (FLASH) ■ Packagin.

WSF3085 - N-Channel MOSFET (Winsok)
WSF3085 N-Ch MOSFET General Description The WSF3085 is the highest performance trench N-ch MOSFET with extreme high cell density , which provide exce.

WSF4012 - P & N-Channel MOSFET (Winsok)
WSF4012 N-Ch and P-Channel MOSFET General Description Product Summery The WSF4012 is the highest performance trench N-ch and P-ch MOSFET with extre.

WSF40N10 - N-Channel MOSFET (VBsemi)
WSF40N10-VB WSF40N10-VB Datasheet N-Channel 100-V (D-S) MOSFET .VBsemi. PRODUCT SUMMARY V(BR)DSS (V) rDS(on) (Ω) 100 0.030 at VGS = 10 V .

TAGS

WSF256K8-xCx 256Kx8 SRAM FLASH MODULE White Electronic

Image Gallery

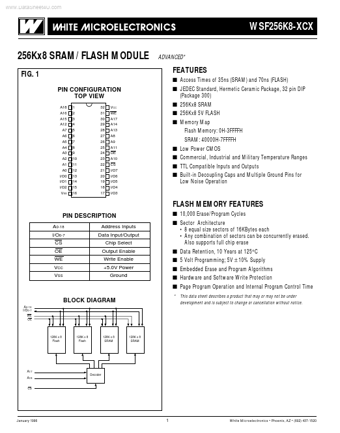

WSF256K8-xCx Datasheet Preview Page 2
