WSF3012 - N-Ch and P-Channel MOSFET

Winsok

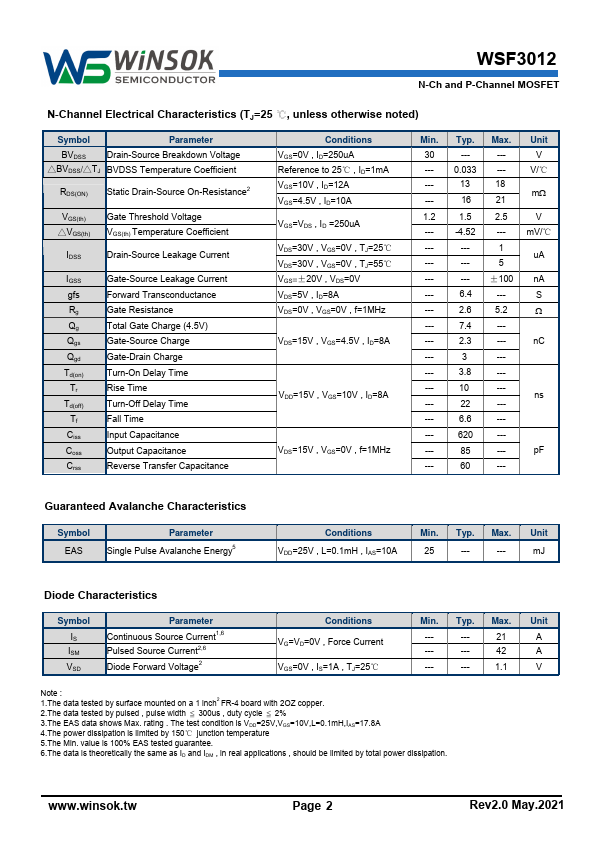

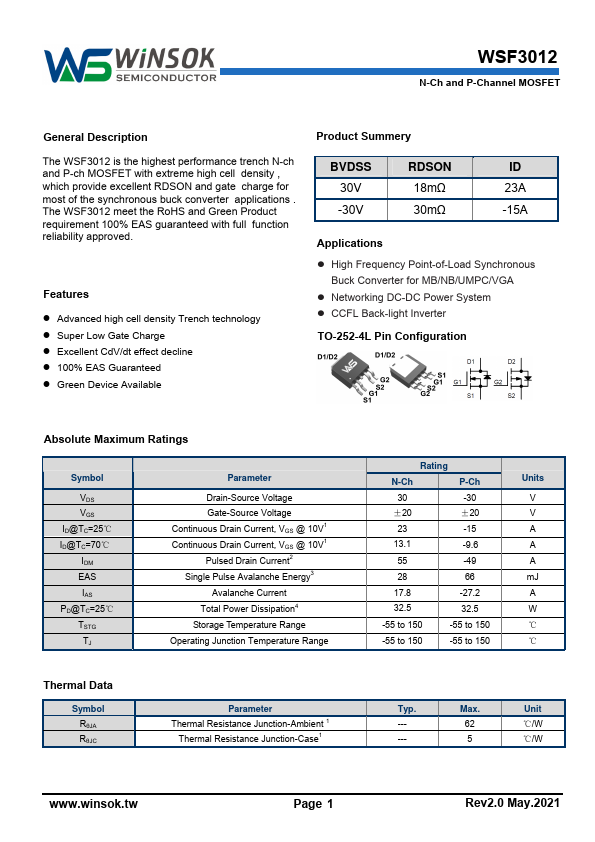

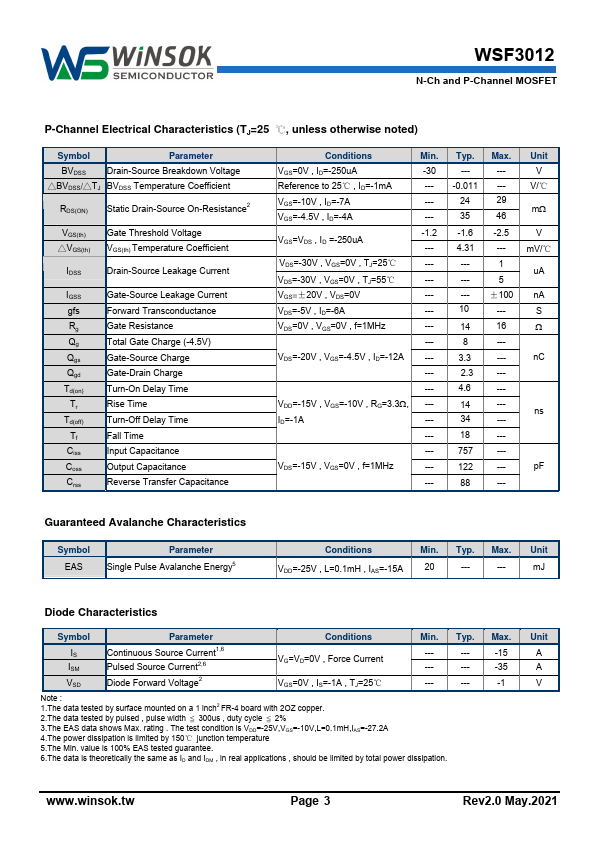

WSF3012 Datasheet Preview — Preview of WSF3012 PDF

Datasheet Details

Part number	WSF3012
Manufacturer	Winsok
File Size	2.70 MB
Description	N-Ch and P-Channel MOSFET
Datasheet	WSF3012-Winsok.pdf

WSF3012 Product details

Description

The WSF3012 is the highest performance trench N-ch and P-ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS 30V -30V RDSON 18mΩ 30mΩ ID 23A -15A.
