WSF3036A Datasheet - Winsok

WSF3036A N-Ch MOSFET

Product Summery The WSF3036A is the highest performance trench N-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSF3036A meet the RoHS and Green Product requirement , 100% EAS guaranteed with f.

WSF3036A Features

* Advanced high cell density Trench technology

* Super Low Gate Charge

* Excellent CdV/dt effect decline

* 100% EAS Guaranteed

* Green Device Available Absolute Maximum Ratings BVDSS RDSON ID 30V 19mΩ 32A Applications

* High Frequency Point-of-Load Synchronous Buck Con

WSF3036A-Winsok.pdf

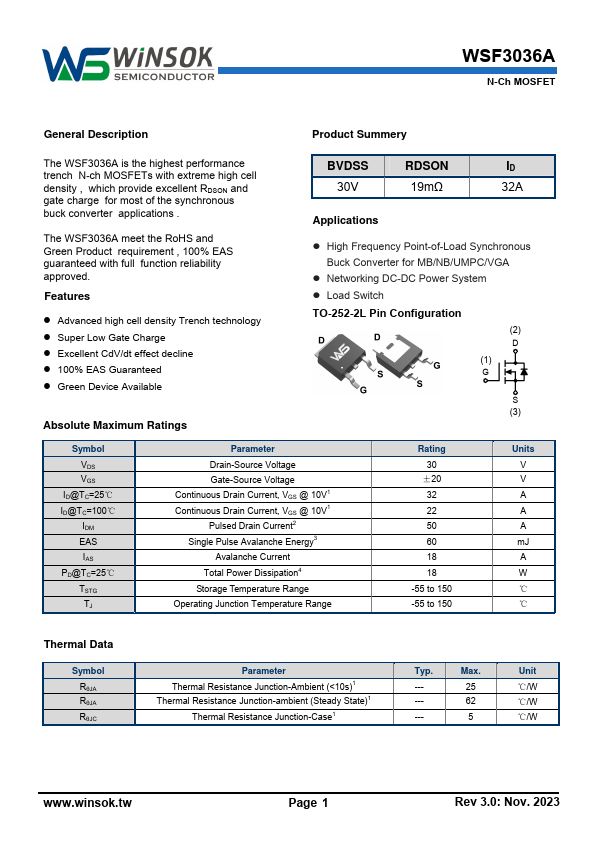

Preview of WSF3036A PDF

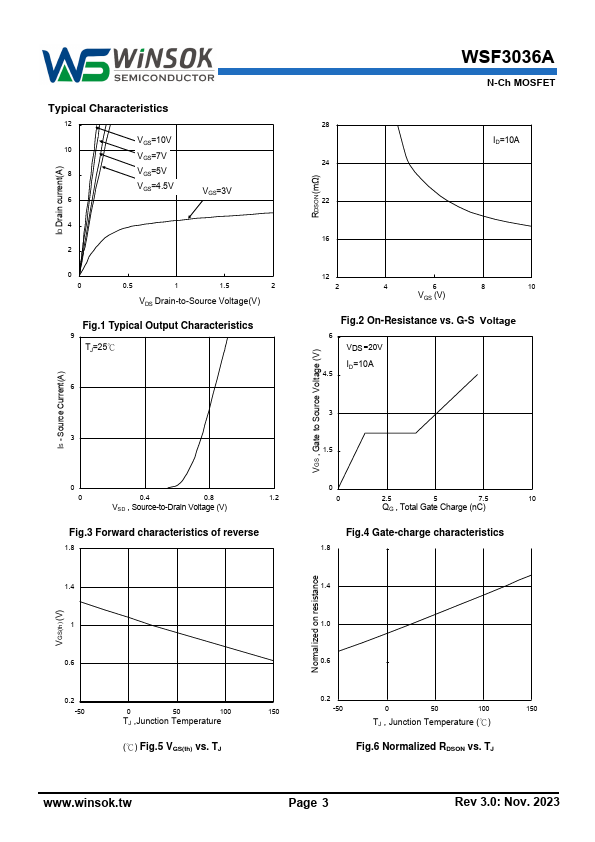

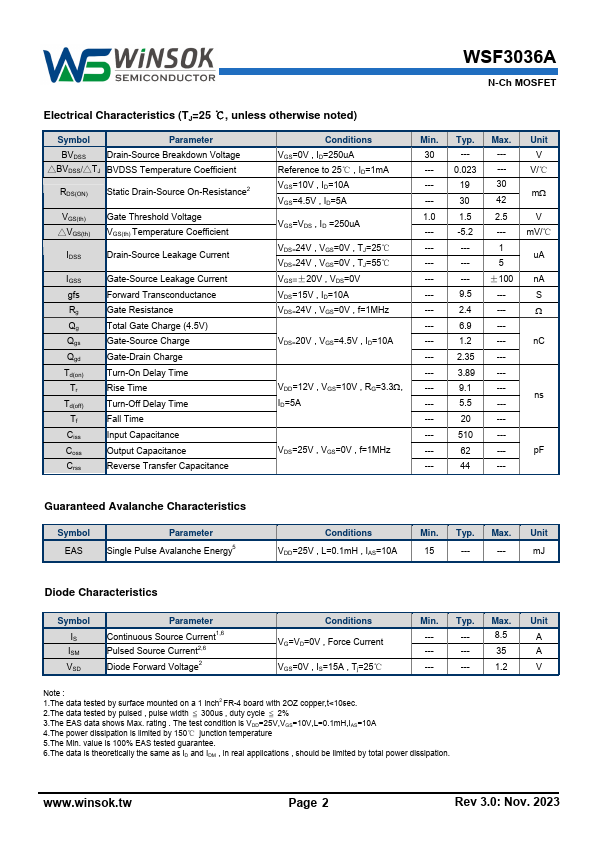

WSF3036A Datasheet Preview Page 2 WSF3036A Datasheet Preview Page 3

Datasheet Details

Part number:

WSF3036A

Manufacturer:

Winsok

File Size:

1.61 MB

Description:

N-ch mosfet.
