WSF3013 Datasheet - Winsok

WSF3013 N-Ch and P-Channel MOSFET

The WSF3013 is the highest performance trench N-ch and P-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSF3013 meet the RoHS and Green Product requirement 100% EAS guaranteed with full function .

WSF3013 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS 30V -30V RDSON 14mΩ 23mΩ ID 12A -11.5A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/U

WSF3013-Winsok.pdf

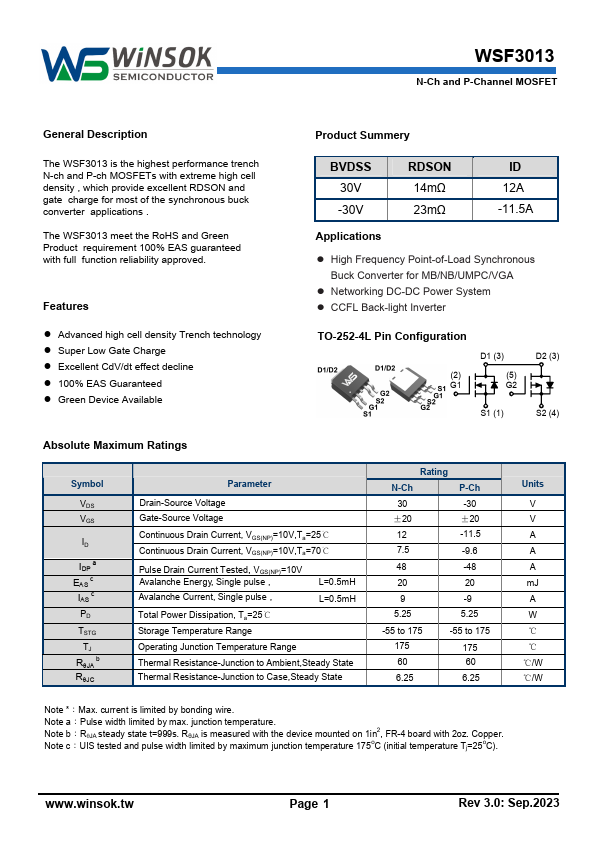

Preview of WSF3013 PDF

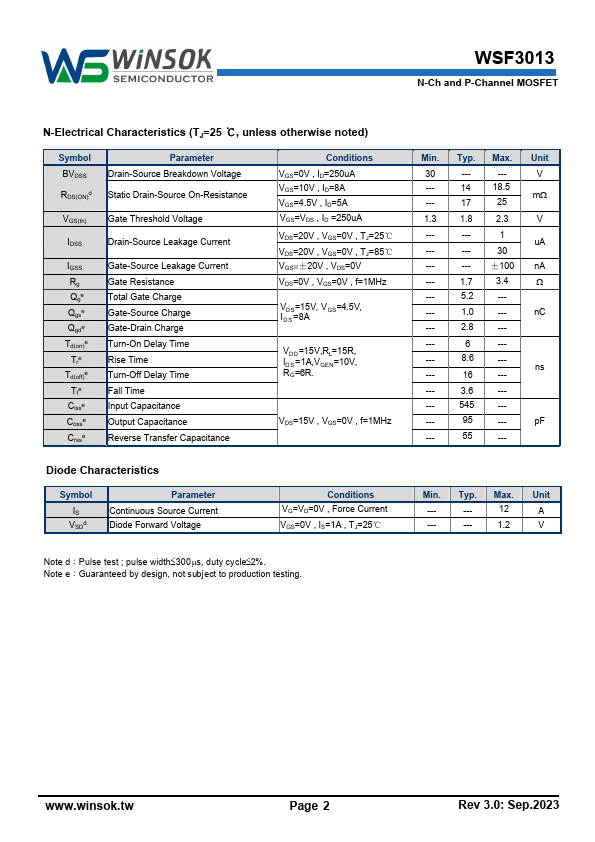

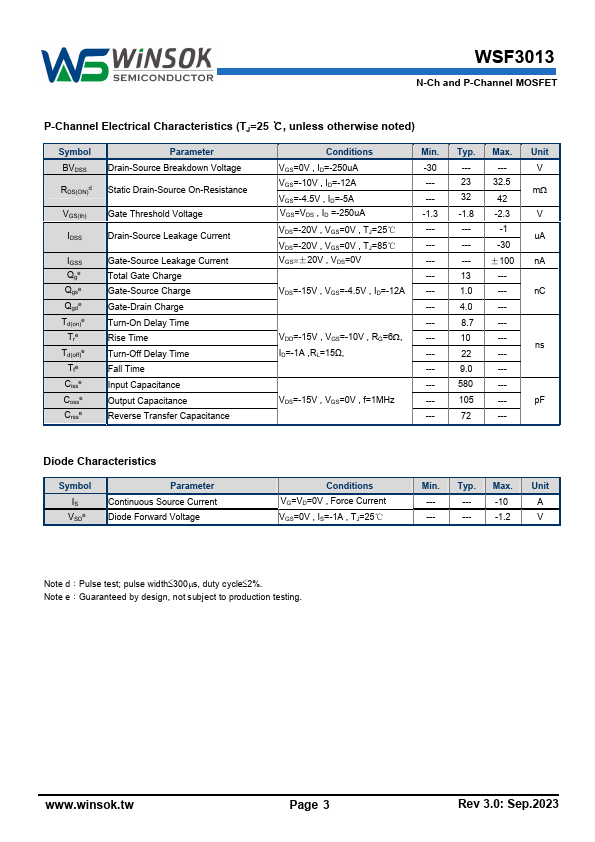

WSF3013 Datasheet Preview Page 2 WSF3013 Datasheet Preview Page 3

Datasheet Details

Part number:

WSF3013

Manufacturer:

Winsok

File Size:

2.85 MB

Description:

N-ch and p-channel mosfet.
