WSF30P04 - P-Ch MOSFET

Winsok

WSF30P04 Datasheet Preview — Preview of WSF30P04 PDF

Datasheet Details

Part number	WSF30P04
Manufacturer	Winsok
File Size	1.18 MB
Description	P-Ch MOSFET
Datasheet	WSF30P04-Winsok.pdf

WSF30P04 Product details

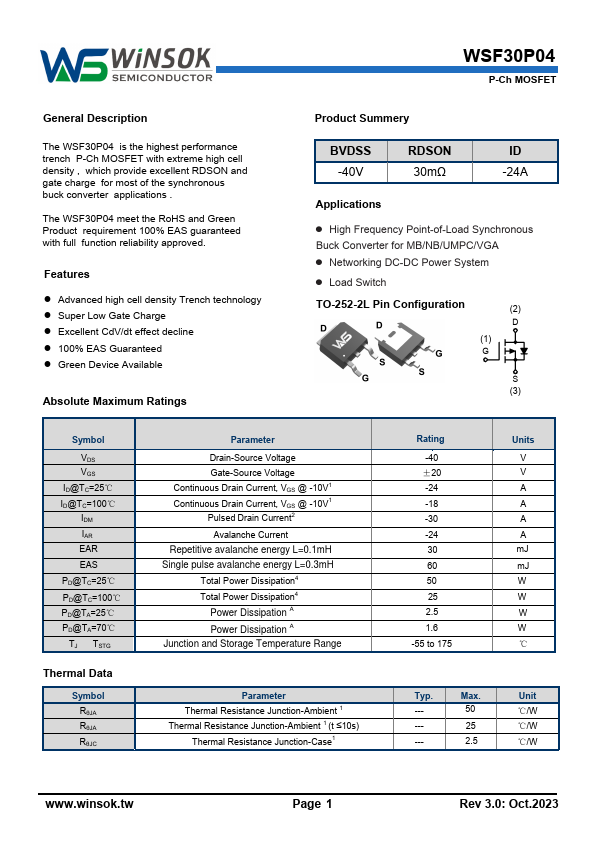

Description

The WSF30P04 is the highest performance trench P-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Absolute Maximum Ratings Product Summery BVDSS -40V RDSON 30mΩ ID -24A.
