WSF30P60 Datasheet - Winsok

WSF30P60 P-Ch MOSFET

Product Summery The WSF30P60 is the highest performance trench P-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSF30P60 meet the RoHS and Green Product requirement 100% EAS guaranteed with full.

WSF30P60 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Absolute Maximum Ratings BVDSS -30V RDSON 12mΩ ID -60A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VG

WSF30P60-Winsok.pdf

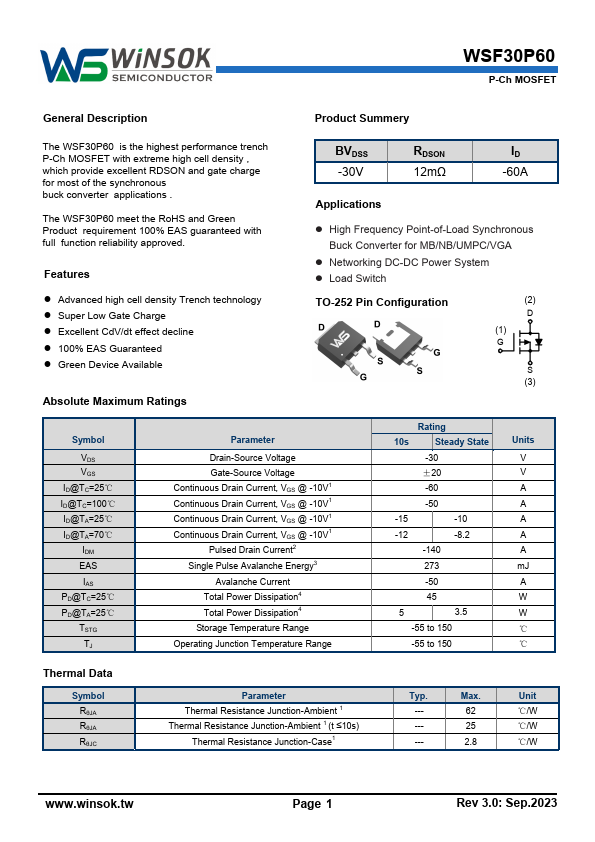

Preview of WSF30P60 PDF

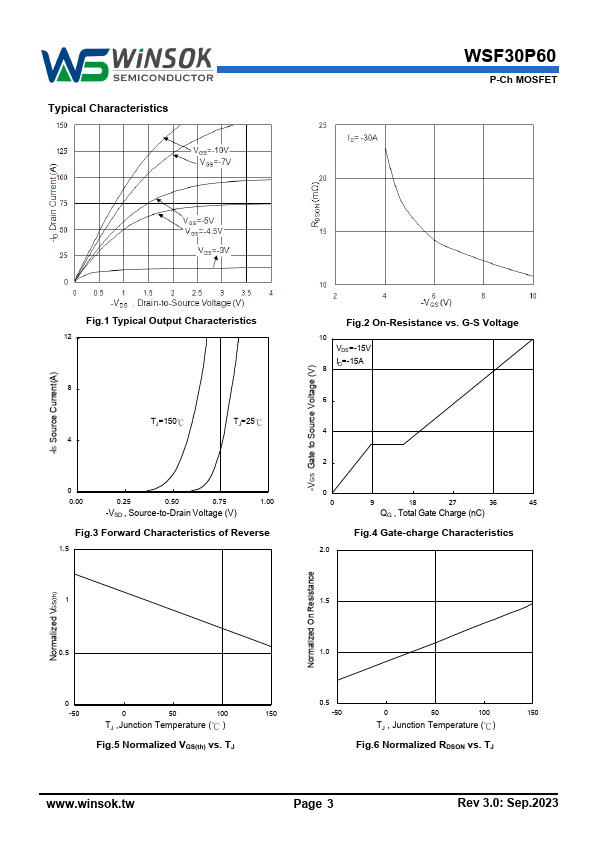

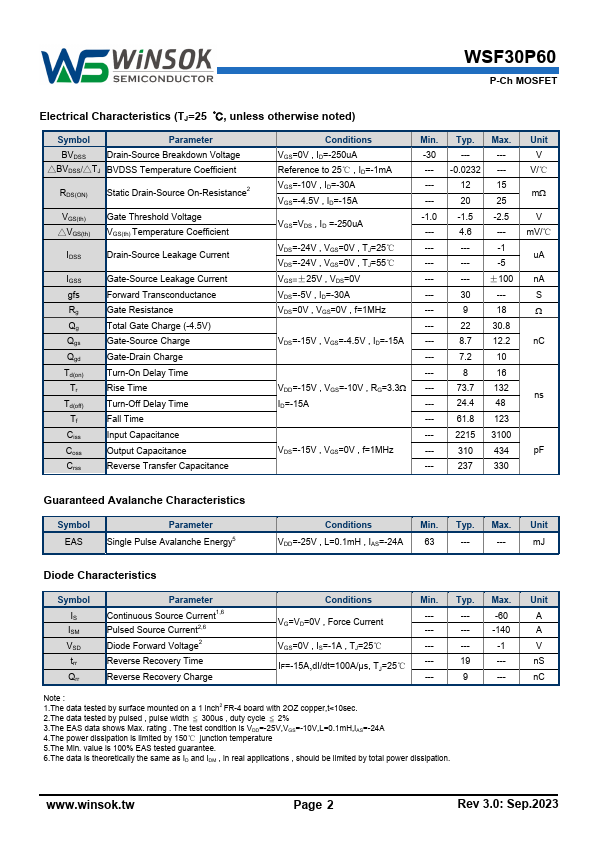

WSF30P60 Datasheet Preview Page 2 WSF30P60 Datasheet Preview Page 3

Datasheet Details

Part number:

WSF30P60

Manufacturer:

Winsok

File Size:

1.39 MB

Description:

P-ch mosfet.
