WSF3047 - N-Ch and P-Channel MOSFET

Winsok

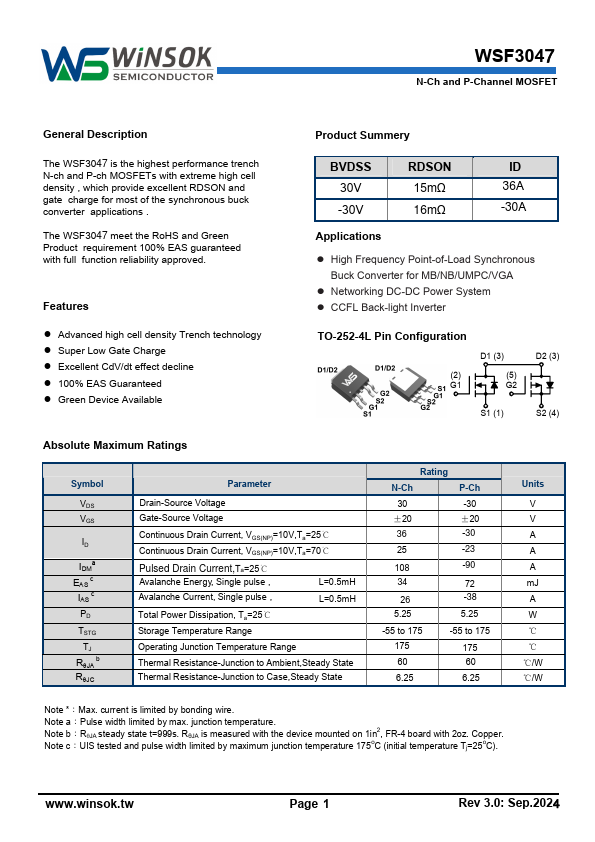

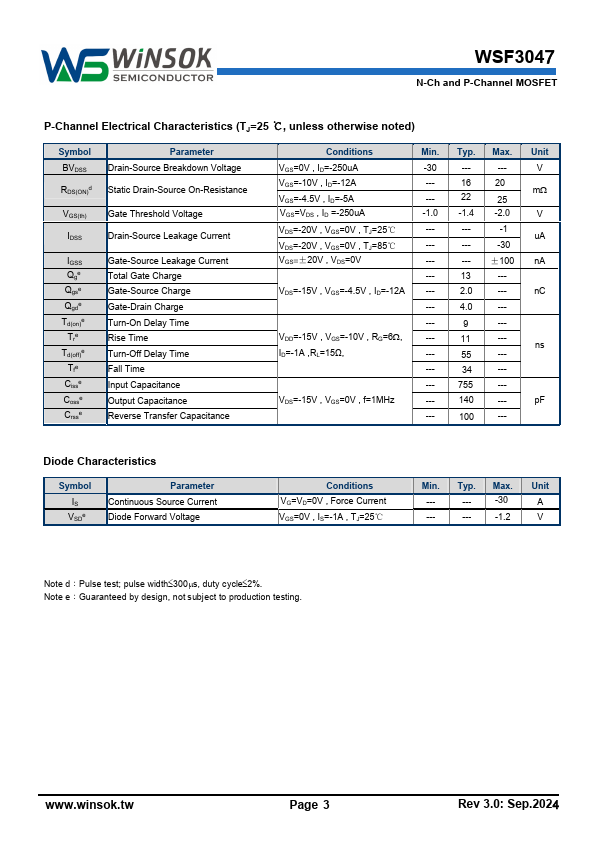

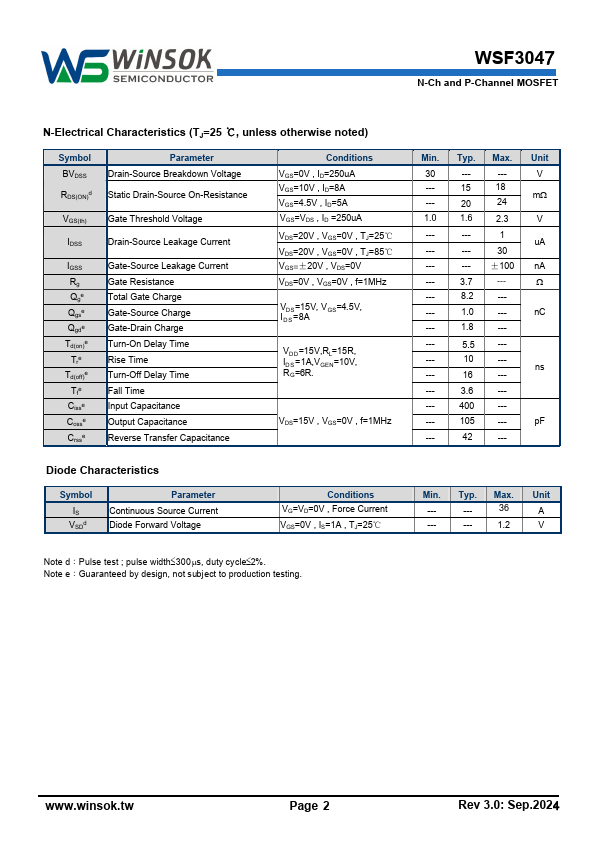

WSF3047 Datasheet Preview — Preview of WSF3047 PDF

Datasheet Details

Part number	WSF3047
Manufacturer	Winsok
File Size	2.88 MB
Description	N-Ch and P-Channel MOSFET
Datasheet	WSF3047-Winsok.pdf

WSF3047 Product details

Description

The WSF3047 is the highest performance trench N-ch and P-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS 30V -30V RDSON 15mΩ 16mΩ ID 36A -30A.
