WSF20N15 Datasheet - Winsok

WSF20N15 N-Ch MOSFET

The WSF20N15 is the highest performance trench N-Ch MOSFET with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSF20N15 meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliabil.

WSF20N15 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Product Summery BVDSS 150V RDSON 65mΩ ID 20A Applications z High Frequency Point-of-Load Synchronous Buck Converter z Networking DC-DC Power System z Load Switch TO

WSF20N15-Winsok.pdf

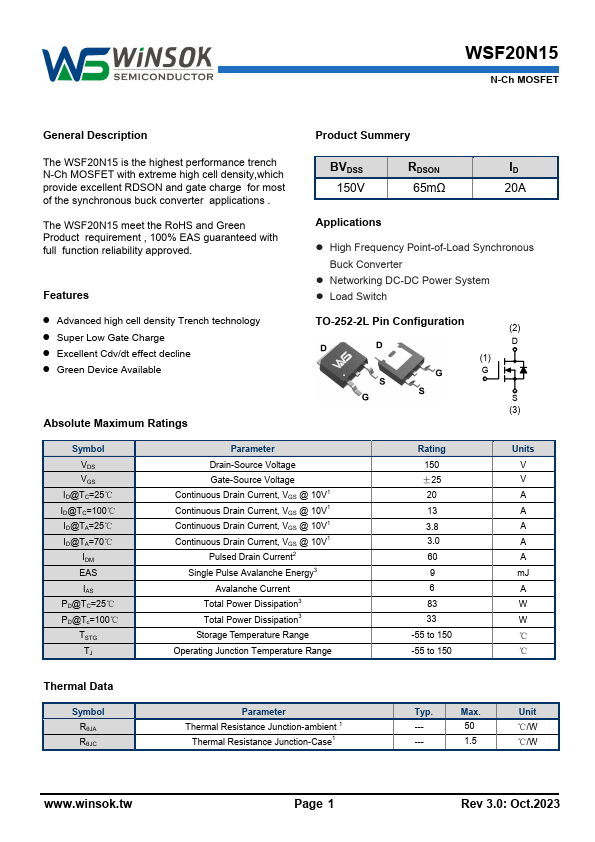

Preview of WSF20N15 PDF

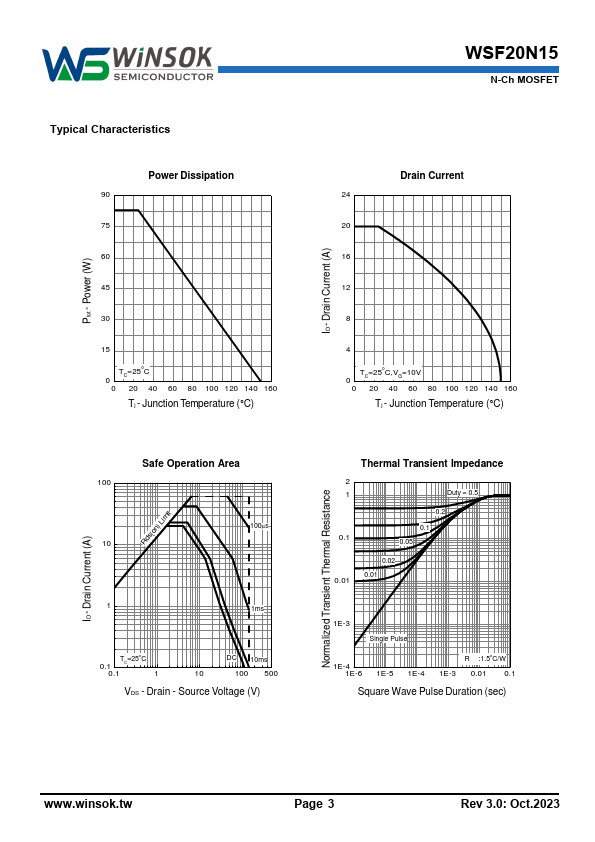

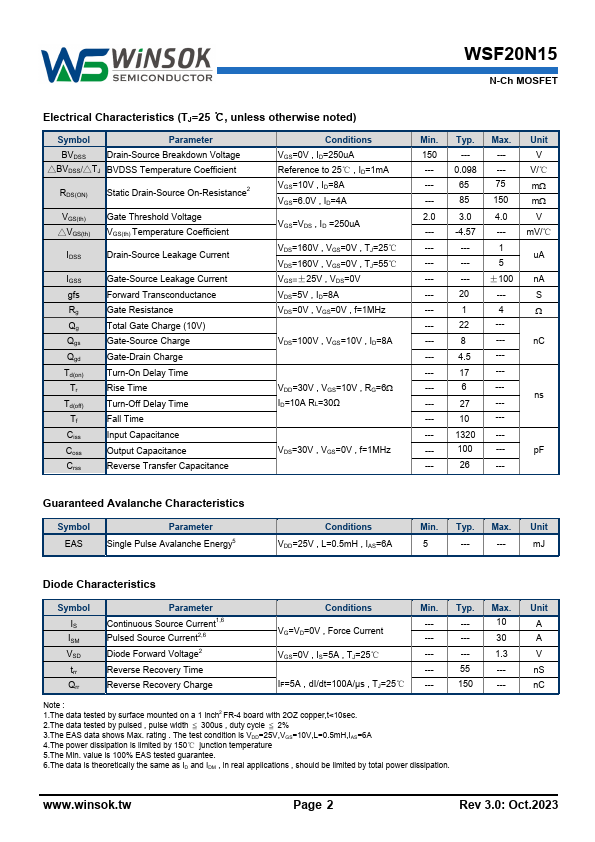

WSF20N15 Datasheet Preview Page 2 WSF20N15 Datasheet Preview Page 3

Datasheet Details

Part number:

WSF20N15

Manufacturer:

Winsok

File Size:

1.62 MB

Description:

N-ch mosfet.
