WSF07N10 Datasheet - Winsok

WSF07N10 N-Ch MOSFET

Product Summery The WSF07N10 is the highest performance trench N-ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSF07N10 meet the RoHS and Green Product requirement , 100% EAS guaranteed with fu.

WSF07N10 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Absolute Maximum Ratings BVDSS RDSON ID 100V 195mΩ 7A Applications z High Frequency Point-of-Load Synchronous Buck Converter z Networking DC-DC Power System z Loa

WSF07N10-Winsok.pdf

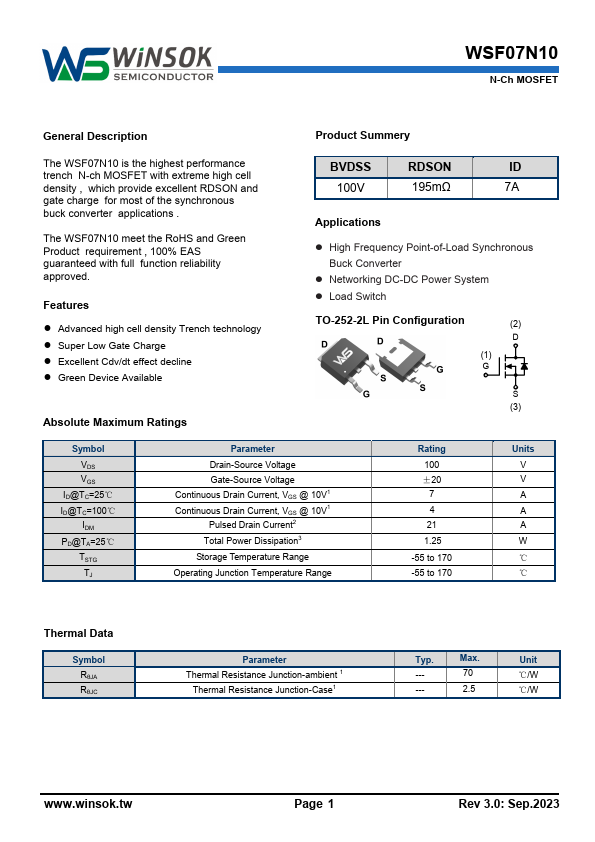

Preview of WSF07N10 PDF

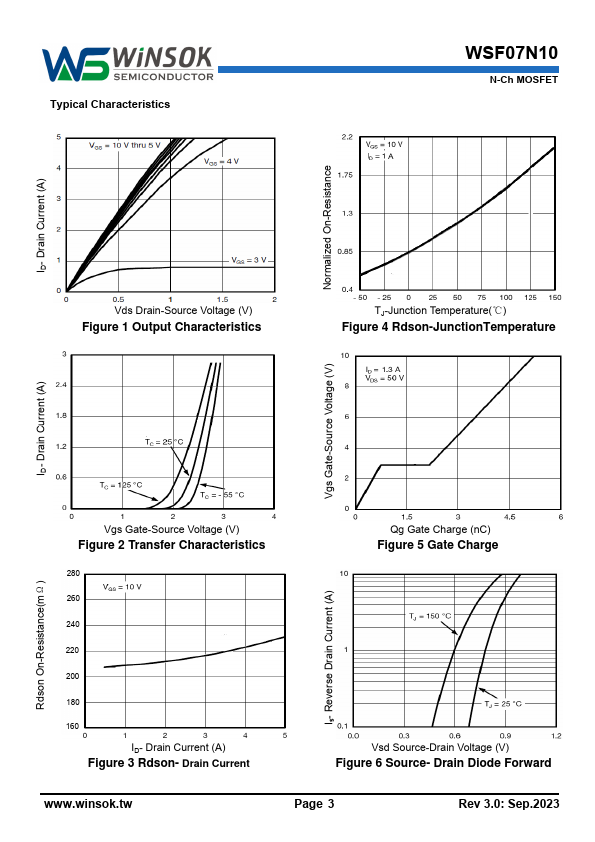

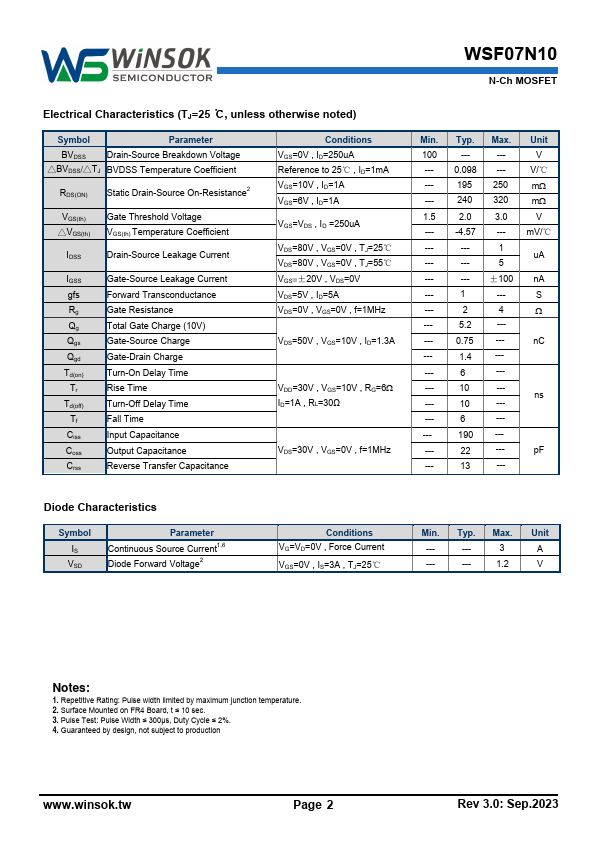

WSF07N10 Datasheet Preview Page 2 WSF07N10 Datasheet Preview Page 3

Datasheet Details

Part number:

WSF07N10

Manufacturer:

Winsok

File Size:

2.03 MB

Description:

N-ch mosfet.
