WSF09N20 - N-Ch MOSFET

Winsok

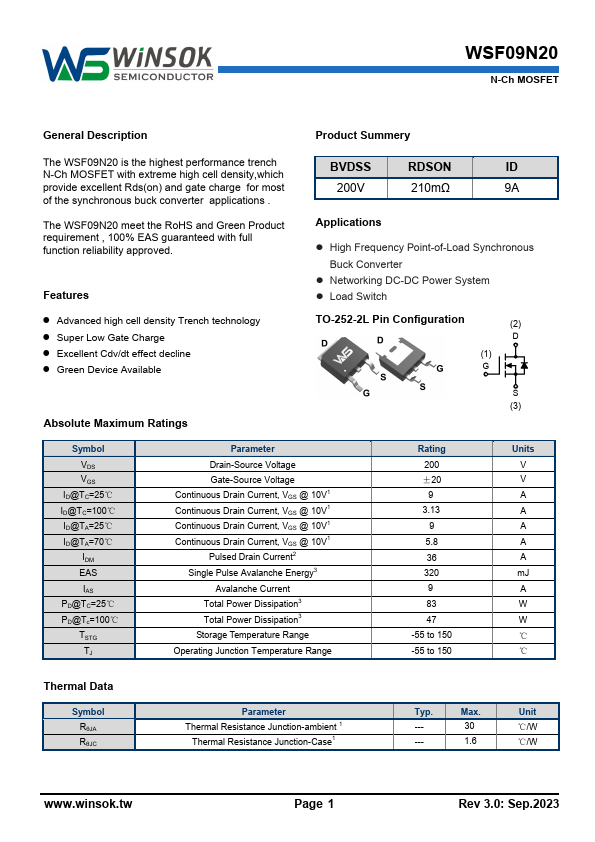

WSF09N20 Datasheet Preview — Preview of WSF09N20 PDF

Datasheet Details

Part number	WSF09N20
Manufacturer	Winsok
File Size	1.85 MB
Description	N-Ch MOSFET
Datasheet	WSF09N20-Winsok.pdf

WSF09N20 Product details

Description

Product Summery The WSF09N20 is the highest performance trench N-Ch MOSFET with extreme high cell density,which provide excellent Rds(on) and gate charge for most of the synchronous buck converter applications .The WSF09N20 meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliability approved.

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available BVDSS RDSON ID 200V 210mΩ 9A.
