WSF15P10 Datasheet - Winsok

WSF15P10 P-Ch MOSFET

Product Summery The WSF15P10 is the highest performance trench P-ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSF15P10 meet the RoHS and Green Product requirement,100% EAS guaranteed with full.

WSF15P10 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available BVDSS -100V RDSON 150mΩ ID -13A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Networking DC-DC Pow

WSF15P10-Winsok.pdf

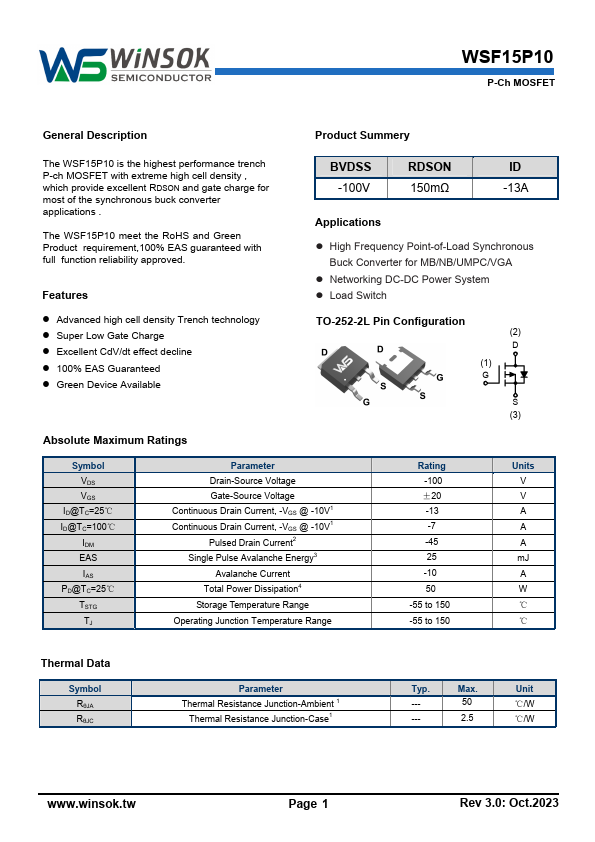

Preview of WSF15P10 PDF

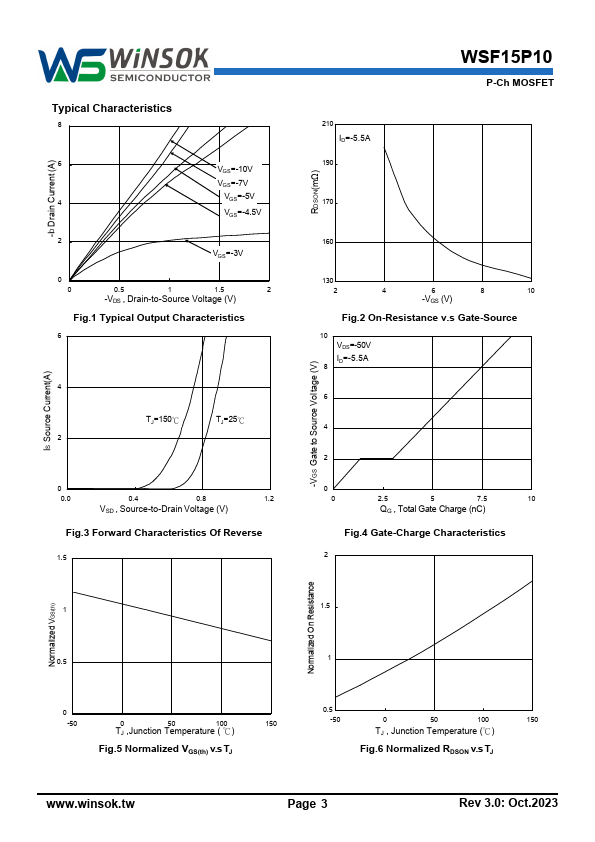

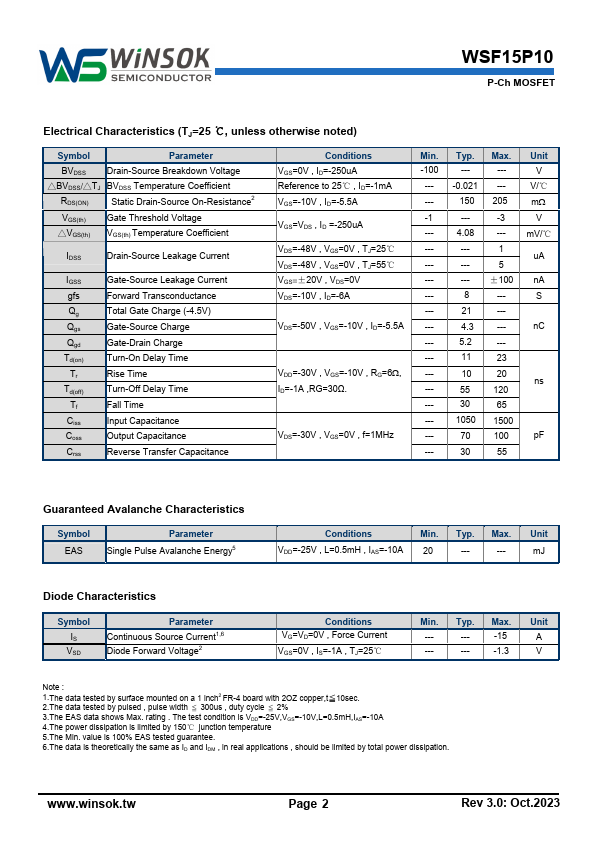

WSF15P10 Datasheet Preview Page 2 WSF15P10 Datasheet Preview Page 3

Datasheet Details

Part number:

WSF15P10

Manufacturer:

Winsok

File Size:

1.91 MB

Description:

P-ch mosfet.
