VSC7807

Photodetector/Transimpedance Amplifier

VSC7807 Features

* Integrated Photodetector/Transimpedance Amplifier Optimized for High-Speed Optical Communications Applications

* Fibre Channel/Gigabit Ethernet-Compatible www.DataSheet4U.co

* mHigh Bandwidth: 1300MHz

* Low Input Noise Equivalent Power: 2.2µW

* Large Optically

VSC7807 General Description

The VSC7807 integrated Photodetector/Transimpedance Amplifier provides a highly integrated solution for converting 850nm light from a fiber optic communications channel into a differential output voltage. The benefits of Vitesse Semiconductor’s Gallium Arsenide H-GaAs process are fully utilized to p.

VSC7807 Datasheet (178.49 KB)

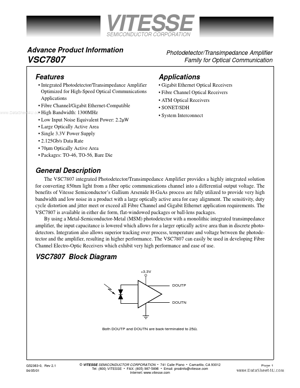

Preview of VSC7807 PDF

Datasheet Details

Part number:

VSC7807

Manufacturer:

Vitesse Semiconductor Corporation

File Size:

178.49 KB

Description:

Photodetector/transimpedance amplifier.
VITESSE SEMICONDUCTOR CORPORATION Advance Product Information VSC7807 Photodetector/Transimpedance Amplifier Family for Optical Communication Featu.
