1SS226 Datasheet, Diodes, WEITRON

1SS226 Features

• Diodes
• Fast Switching Speed
• Surface Mount Package Ideally Suited for Automatic Insertion
• High Conductance
• For General Purpose Switching Applications Me

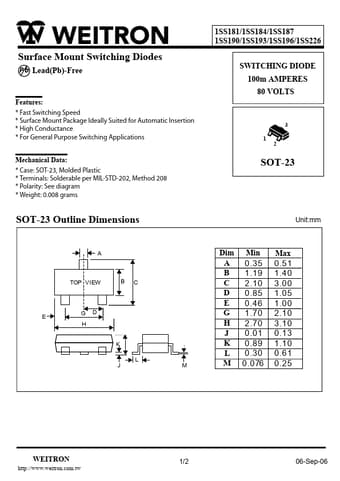

PDF File Details

Part number:

1SS226

Manufacturer:

WEITRON

File Size:

162.07kb

Download:

📄 Datasheet

Description:

Surface mount switching diodes.

1SS226 Application

• Applications Mechanical Data:
• Case: SOT-23, Molded Plastic
• Terminals: Solderable per MIL-STD-202, Method 208
• Polarity:
