DB101S

SILICON SURFACE MOUNT BRIDGE RECTIFIER

DB101S Features

* Surge overload rating - 50 amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded Glass passivated device Polarity symbols molded on body Mounting position: Any Weight: 0. 378 grams RoHS product for packing code su

DB101S Datasheet (299.49 KB)

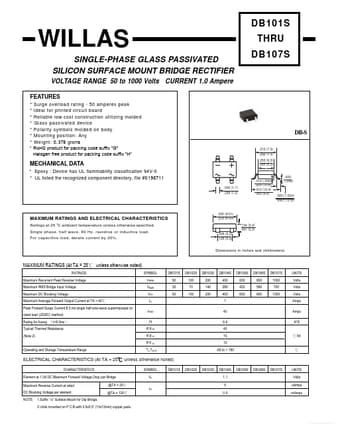

Preview of DB101S PDF

Datasheet Details

Part number:

DB101S

Manufacturer:

WILLAS

File Size:

299.49 KB

Description:

Silicon surface mount bridge rectifier.
