DB102S, DB101S (DB101S - DB107S) SILICON SURFACE MOUNT BRIDGE RECTIFIER

DB102S Description

DB101S WILLAS SINGLE-PHASE GLASS PASSIVATED SILICON SURFACE MOUNT BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere .

DB102S Features

* Surge overload rating - 50 amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded Glass passivated device Polarity symbols molded on body Mounting position: Any Weight: 0. 378 grams RoHS product for packing code su

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DB102S, DB101S. Please refer to the document for exact specifications by model.

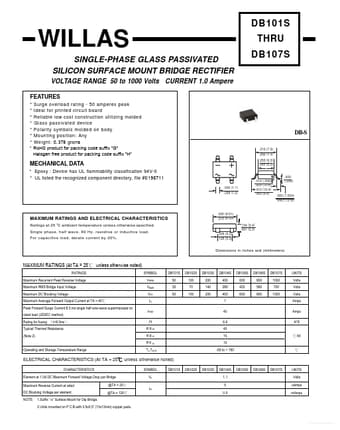

datasheet Preview Page 2

Datasheet Details

Part number
DB102S, DB101S
Manufacturer
WILLAS
File Size
299.49 KB
Datasheet
DB101S_WILLAS.pdf
Description
(DB101S - DB107S) SILICON SURFACE MOUNT BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: DB102S, DB101S.
Please refer to the document for exact specifications by model.
