DB103S, DB101S - (DB101S - DB107S) SILICON SURFACE MOUNT BRIDGE RECTIFIER

Name: DB103S
SKU: DB103S-762875

WILLAS

The DB103S by WILLAS is a (DB101S - DB107S) SILICON SURFACE MOUNT BRIDGE RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	DB103S, DB101S
Manufacturer	WILLAS
File Size	299.49 KB
Description	(DB101S - DB107S) SILICON SURFACE MOUNT BRIDGE RECTIFIER
Datasheet	DB101S_WILLAS.pdf
Note	This datasheet PDF includes multiple part numbers: DB103S, DB101S. Please refer to the document for exact specifications by model.

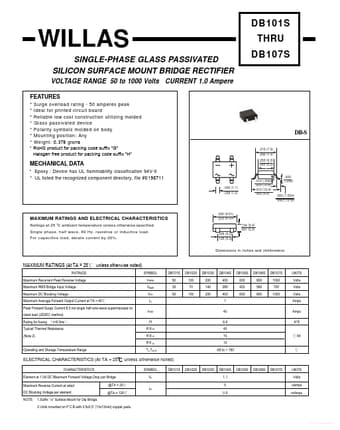

Additional preview pages of the DB103S datasheet.

Surge overload rating - 50 amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded Glass passivated device Polarity symbols molded on body Mounting position: Any Weight: 0. 378 grams RoHS product for packing code suffix "G" Halogen free product for packing code suffix "H" THRU DB107S DB-S .310 (7.9) .290 (7.4) .255 (6.5) .245 (6.2).
