S3D, S3D-WON - 3.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE

Name: S3D
SKU: S3D-1204207

WON-TOP

The S3D by WON-TOP is a 3.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE. Below is the official datasheet preview.

Datasheet Details

Part number	S3D, S3D-WON
Manufacturer	WON-TOP
File Size	34.75 KB
Description	3.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE
Datasheet	S3D-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: S3D, S3D-WON. Please refer to the document for exact specifications by model.

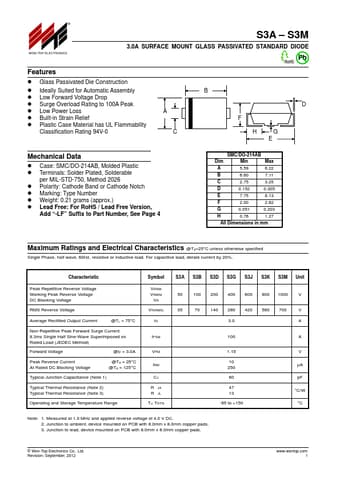

Additional preview pages of the S3D datasheet.

Glass Passivated Die Construction.
Ideally Suited for Automatic Assembly.
Low Forward Voltage Drop.
Surge Overload Rating to 100A Peak.
Low Power Loss.
Built-in Strain Relief.
Plastic Case Material has UL Flammability Classification Rating 94V-0 A C B F HG E D Mechanical Data.
Case: SMC/DO-214AB, Molded Plastic.
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
Polarity: Cathode Band or Cathode Notch.
Marking: Type Num.
