SB5200, SB5150-WON - 5.0A HIGH VOLTAGE SCHOTTKY BARRIER DIODE

WON-TOP

📥 Download Datasheet

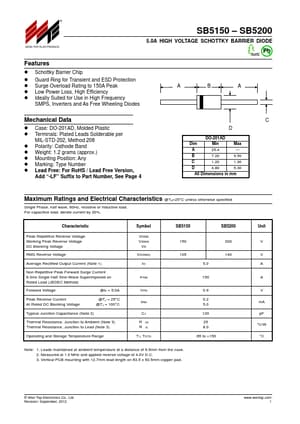

SB5200 Datasheet Preview — This datasheet PDF includes multiple part numbers: SB5200, SB5150-WON. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SB5200, SB5150-WON
Manufacturer	WON-TOP
File Size	39.86 KB
Description	5.0A HIGH VOLTAGE SCHOTTKY BARRIER DIODE
Datasheet	SB5150-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: SB5200, SB5150-WON. Please refer to the document for exact specifications by model.

SB5200 Product details

Features

Schottky Barrier Chip.
Guard Ring for Transient and ESD Protection.
Surge Overload Rating to 150A Peak.
Low Power Loss, High Efficiency.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes ABA Mechanical Data.
Case: DO-201AD, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Weight: 1.2 grams (approx. ).
Mounting Position: Any.
Marking: Type Number.
