WT6160

(WT6148 / WT6160) Digital Monitor Controller

WT6160 Features

* 8-bit 6502 compatible CPU with 6MHz operating frequency

* WT6148 : 48K bytes ROM, WT6160 : 60K bytes ROM, ,1024 bytes SRAM+32 bytes bit addressable SRAM

* 12MHz crystal oscillator

* 14 channels 8-bit PWM outputs

* Sync signal processor with H+V separation, H

WT6160 Datasheet (73.24 KB)

Preview of WT6160 PDF

Datasheet Details

Part number:

WT6160

Manufacturer:

Weitrend

File Size:

73.24 KB

Description:

(wt6148 / wt6160) digital monitor controller.

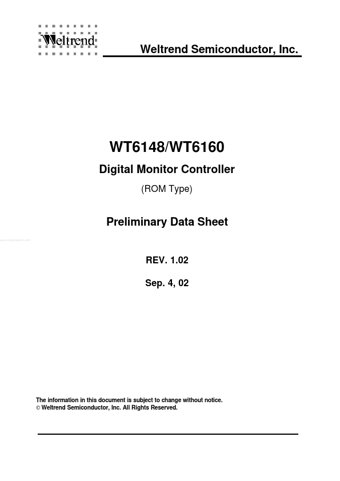

Weltrend Semiconductor, Inc. WT6148/WT6160 Digital Monitor Controller (ROM Type) Preliminary Data Sheet www.DataSheet4U.com REV. 1.02 Sep. 4, 02 T.
