WT6132 - microcontroller for digital controlled monitor

The WT6132/WT6124/WT6116 is a microcontroller for digital controlled monitor with Universal Serial Bus (USB) interface.

It contains an 8-bit CPU, 32K/24K/16K bytes ROM, 512/384 bytes RAM, 14 PWMs, 2 parallel I/Os, SYNC signal processor, timer, DDC1/2B interface, master/slave I C interface, low speed

WT6132 Features

* 8-bit 6502 compatible CPU with 6MHz operating frequency

* WT6132 - 32768 bytes ROM, 512 bytes RAM WT6124 - 24576 bytes ROM, 512 bytes RAM WT6116 - 16384 bytes ROM, 384 bytes RAM

* 12MHz crystal oscillator

* 14 channels 8-bit PWM outputs

* Sync signal process

WT6132_ETC.pdf

Preview of WT6132 PDF

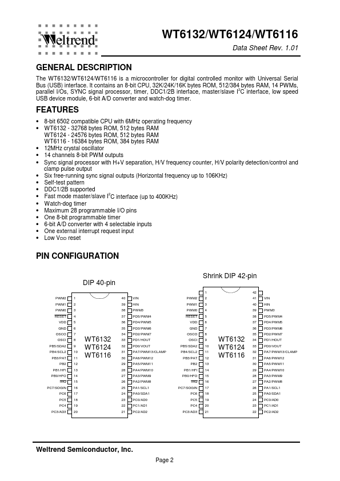

WT6132 Datasheet Preview Page 2 WT6132 Datasheet Preview Page 3

Datasheet Details

Part number:

WT6132

Manufacturer:

ETC

File Size:

377.19 KB

Description:

Microcontroller for digital controlled monitor.
