WT61P6 - Embedded Micro-Controller

Weltrend

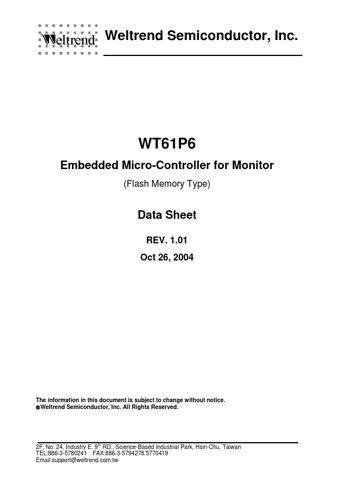

WT61P6 Datasheet Preview — Preview of WT61P6 PDF

Datasheet Details

Part number	WT61P6
Manufacturer	Weltrend
File Size	430.27 KB
Description	Embedded Micro-Controller
Datasheet	WT61P6-Weltrend.pdf

WT61P6 Product details

Description

The WT61P6 is a microcontroller for digital controlled monitor with 1) 8051 compatible cpu, 2) 128K bytes Flash memory, 3) 1536 bytes SRAM, 4) 16 PWMs, 5) SYNC signal processor, 6) 2 timers, 7) two DDC1/2B interface, 8) master/slave I2C interface, 9) 8-bit A/D converter, 10) watch-dog timer, 11) ISP, 12) power down mode, 13) embedded ICE mode.

Features

8-bit 8051 compatible CPU with 12/24MHz operating frequency 128K bytes flash memory, 1536 bytes SRAM (256 bytes internal + 1280 bytes external) 12/24MHz crystal oscillator 16 channels PWM outputs (15/ 8-bit + 1/ 12-bit), 1/ 8-bit also support low speed 60Hz PWM output Sync signal processor with H+V.
