WT6116 Datasheet - ETC

microcontroller for digital controlled monitor

WT6116 Features

* 8-bit 6502 compatible CPU with 6MHz operating frequency

* WT6132 - 32768 bytes ROM, 512 bytes RAM WT6124 - 24576 bytes ROM, 512 bytes RAM WT6116 - 16384 bytes ROM, 384 bytes RAM

* 12MHz crystal oscillator

* 14 channels 8-bit PWM outputs

* Sync signal process

WT6116 General Description

The WT6132/WT6124/WT6116 is a microcontroller for digital controlled monitor with Universal Serial Bus (USB) interface. It contains an 8-bit CPU, 32K/24K/16K bytes ROM, 512/384 bytes RAM, 14 PWMs, 2 parallel I/Os, SYNC signal processor, timer, DDC1/2B interface, master/slave I C interface, low speed.

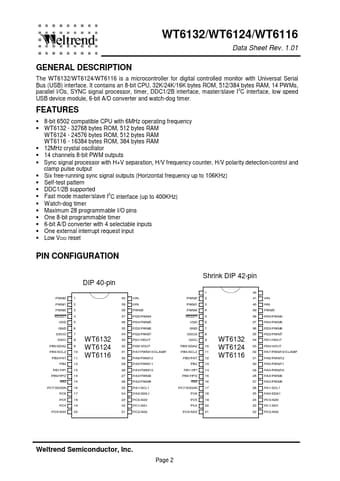

WT6116 Datasheet (377.19 KB)

WT6116 Datasheet Preview — Preview of WT6116 PDF

Datasheet Details

Part number:

WT6116

Manufacturer:

ETC

File Size:

377.19 KB

Description:

Microcontroller for digital controlled monitor.
