WT61P4 - Embedded Micro Controller

Weltrend

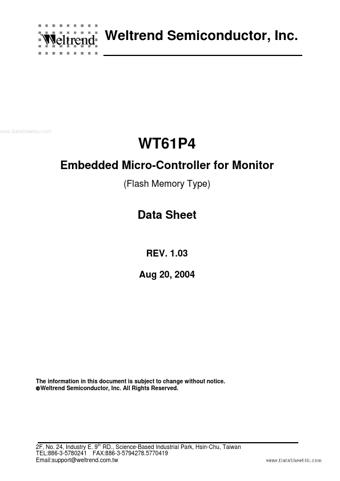

WT61P4 Datasheet Preview — Preview of WT61P4 PDF

Datasheet Details

Part number	WT61P4
Manufacturer	Weltrend
File Size	341.34 KB
Description	Embedded Micro Controller
Datasheet	WT61P4_Weltrend.pdf

WT61P4 Product details

Description

The WT61P4 is a microcontroller for digital controlled monitor with 1) 8051 compatible cpu, 2) 64K bytes Flash memory, 3) 1024 bytes SRAM, 4) 16 PWMs, 5) SYNC signal processor, 6) 2 timers, 7) DDC1/2B interface, 8) master/slave I2C interface, 9) 8-bit A/D converter, 10) watch-dog timer, 11) ISP, 12) power down mode 13)IR detect.

Features

www. DataSheet4U. com.
64K.
8-bit 8051 compatible CPU with 12/24MHz operating frequency bytes flash memory, 1024 bytes SRAM (256 bytes internal + 768 bytes external).
12/24MHz crystal oscillator.
16 channels PWM outputs (15 8-bit + 1 16-bit).
Sync signal processor with H+V separation, H/V frequency counter, H/V polarity detection/control and clamp pulse output.
Programmable free-running SYNC signal output & White video pattern (Horizontal freq.
