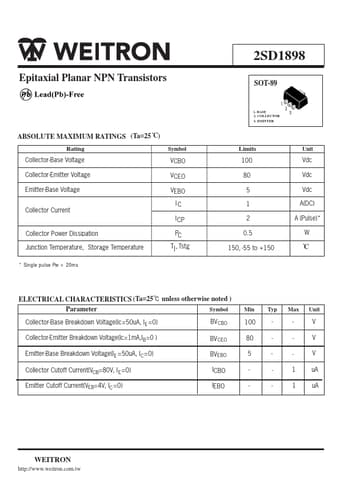

2SD1898, Epitaxial Planar NPN Transistors

2SD1898 Epitaxial Planar NPN Transistors SOT-89 1 1.

BASE 2.

COLLECTOR 3.

EMITTER 2 3 ABSOLUTE MAXIMUM RATINGS (Ta=25 C) Rating Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature, Storage Temperature Single pulse Pw = 20ms Symbol Limits 100 80 5 1 2 0.5 150, -55 to +150 Unit VCBO VCEO VEBO IC I CP PC www.DataSheet4U.com Vdc Vdc Vdc A(DC) A (Pulse) W Tj , Tstg C C unless otherwise noted ) E
