2SD1892, Silicon NPN Transistor

Power Transistors 2SD1892 Silicon NPN triple diffusion planar type Darlington For power amplification Complementary to 2SB1252 10.0±0.2 5.5±0.2 2.7±0.

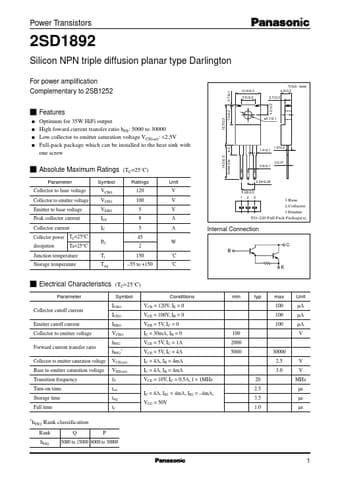

datasheet Preview Page 1 from Datasheet4u.com

2SD1892_PanasonicSemiconductor.pdf

2SD1892 Datasheet Preview — Preview of 2SD1892 PDF

Datasheet Details

Part number:

2SD1892

Manufacturer:

Panasonic Semiconductor

File Size:

55.29 KB

Description:

Silicon NPN Transistor

Features

* q q q q 0.7±0.1 4.2±0.2 Unit: mm 14.0±0.5 Optimum for 35W HiFi output High foward current transfer ratio hFE: 5000 to 30000 Low collector to emitter saturation voltage VCE(sat):
