2SD1898-R - NPN Silicon Power Transistors

Product Overview

MCC

📥 Download Datasheet

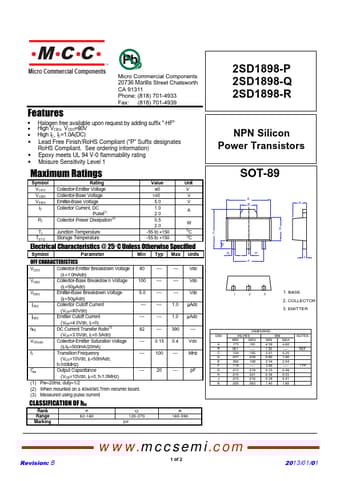

2SD1898-R NPN Silicon Power Transistors by MCC - Datasheet Preview — Datasheet preview – 2SD1898-R

Datasheet Details

Part number	2SD1898-R
Manufacturer	MCC
File Size	307.85 KB
Description	NPN Silicon Power Transistors
Datasheet	2SD1898-R Datasheet
Note	This datasheet PDF includes multiple part numbers: 2SD1898-R, 2SD1898-P. Please refer to the document for exact specifications by model.
Additional preview pages of the 2SD1898-R datasheet.

Product details

Features

Halogen free available upon request by adding suffix "-HF".
High VCEO, VCEO=80V.
High IC, IC=1.0A(DC).
Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information).
Epoxy meets UL 94 V-0 flammability rating.
Moisure Sensitivity Level 1 Maximum Ratings Symbol VCEO VCBO VEBO IC PC Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current, DC Pulse(1) Collector Power D.
